Ignition Switch Control Unit Connector End View (View 307)
Ignition Switch Control Unit Connector End View (View 307)
GRN
Under steering column cover
On dashboard wire harness (around the steering column)

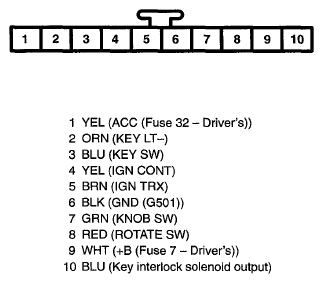

Fig 1: Ignition Switch Control Unit Connector Terminals (View 307)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
