TPMS Control Unit Connector A Connector End View (View 455)

LT BLU
Right side of rear shelf
On rear shelf wire harness
Connector A

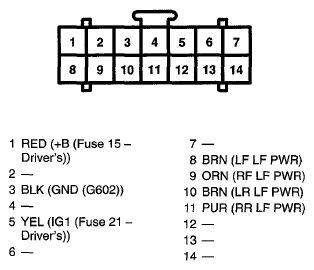

Fig 1: TPMS Control Unit Connector A Terminals (View 455)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

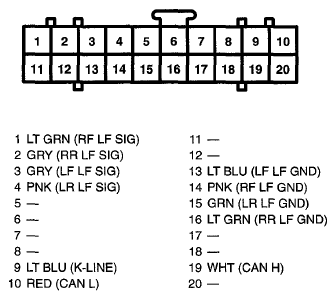

Fig 2: TPMS Control Unit Connector B Terminals (View 455)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
