Navigation Display Unit Connector End View (View 393)

• BLK/WHT
• Middle of dash
• On dashboard wire harness (center branch)

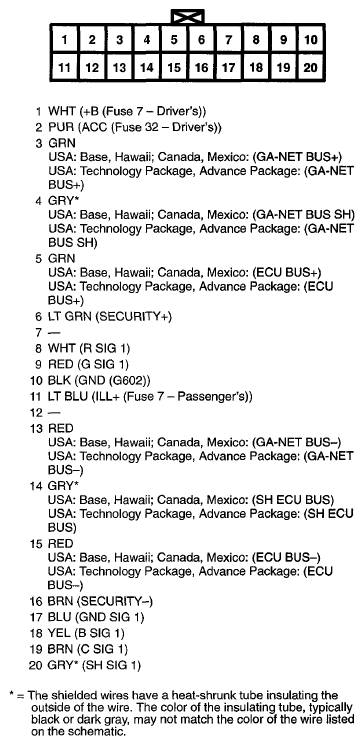

  Fig 1: Navigation Display Unit Connector Terminals (View 393)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
