AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package) Connector A Connector End View (View 428)

Left side of trunk
Connector A
- GRY
- On left side wire harness (rear branch)

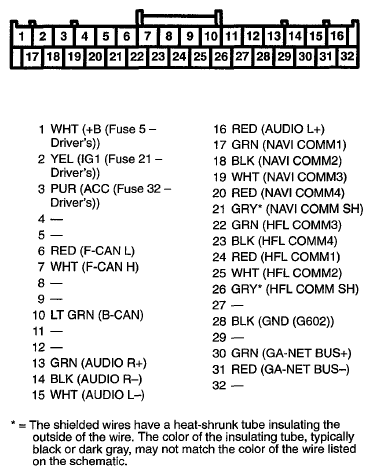

  Fig 1: AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package) Connector A Terminals (View 428)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector B
- BLK
- On XM antenna lead harness

  Fig 2: AcuraLink Control Unit (XM Receiver) (USA: Technology Package, Advance Package) Connector B Terminals (View 428)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
