Navigation System: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

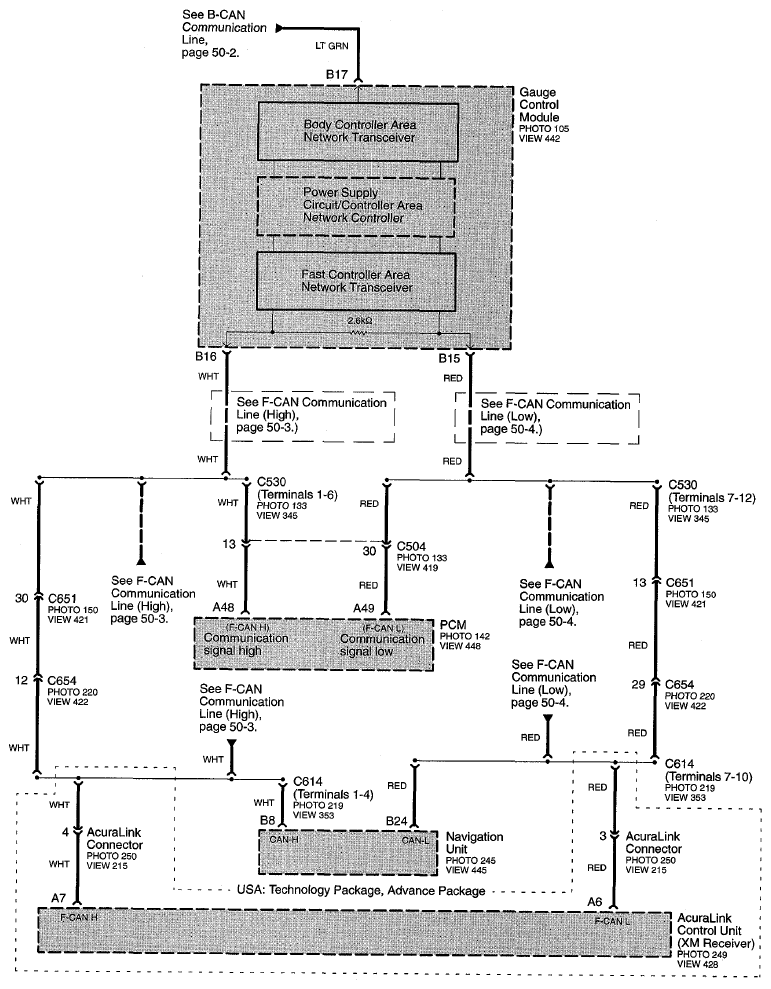

Fig 1: Navigation System Circuit Diagram (Page 156)

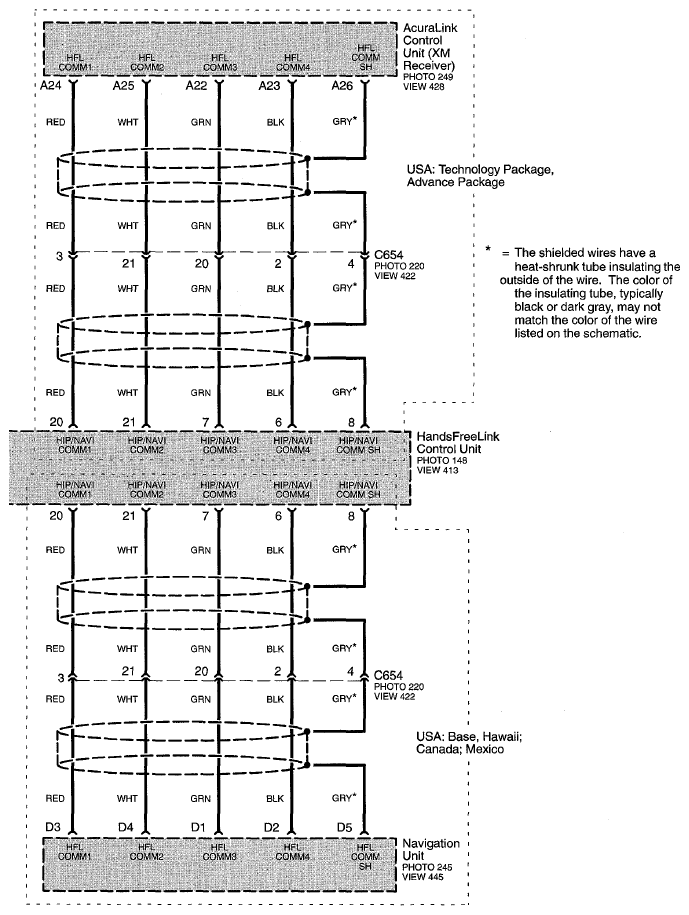

Fig 2: Navigation System Circuit Diagram (Page 156-1)

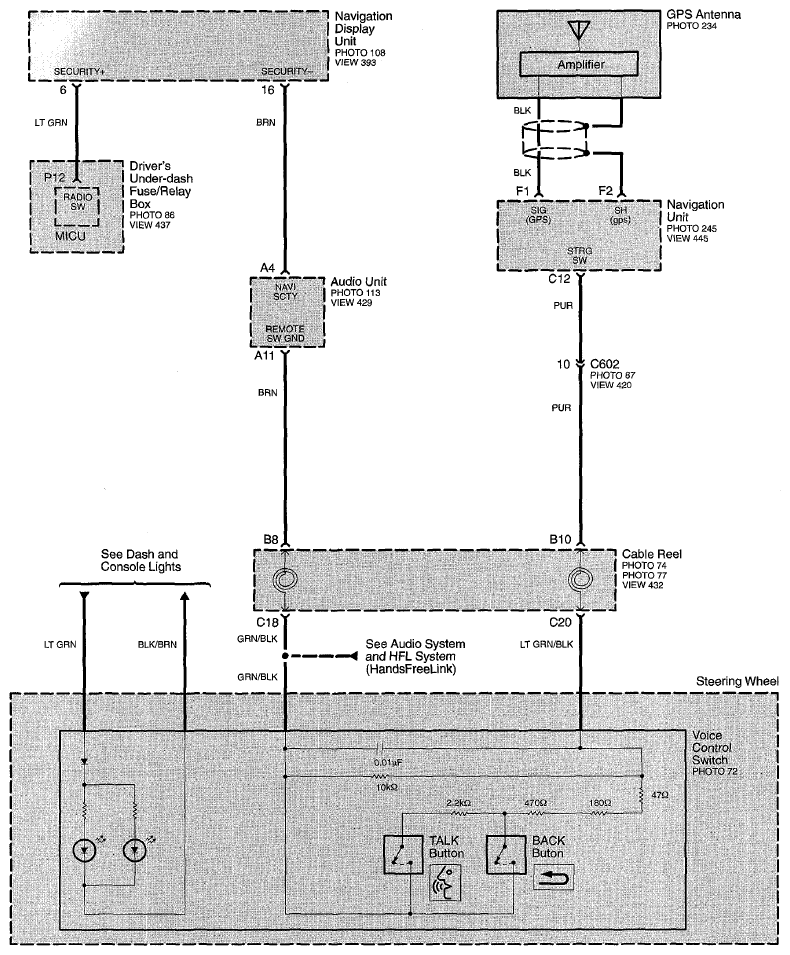

Fig 3: Navigation System Circuit Diagram (Page 156-2)

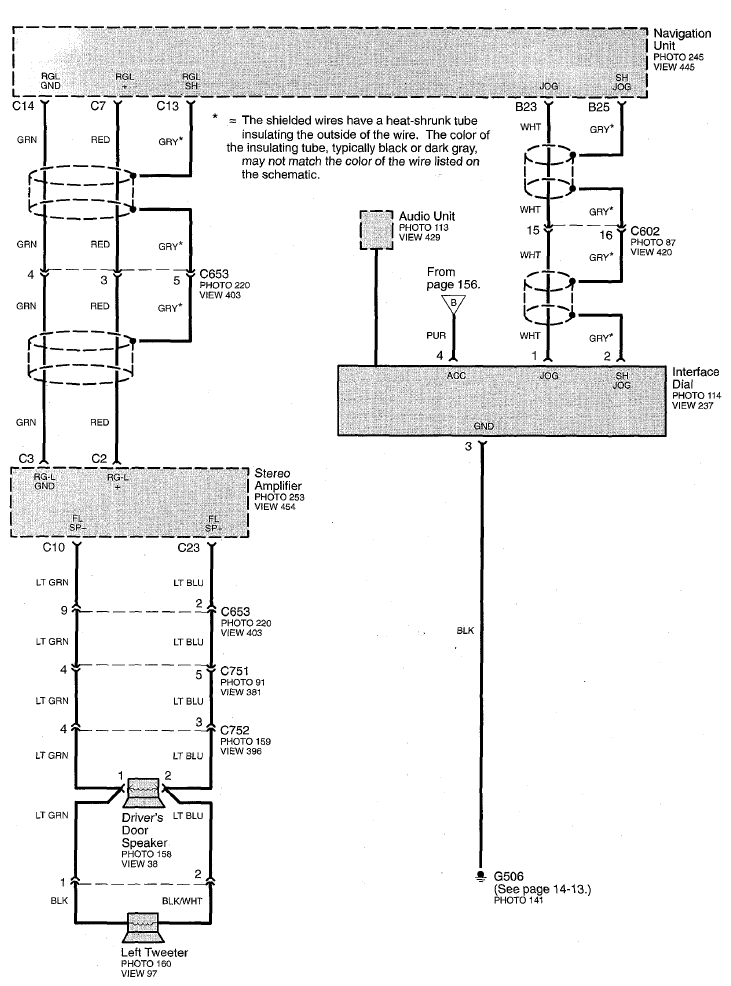

Fig 4: Navigation System Circuit Diagram (Page 156-3)

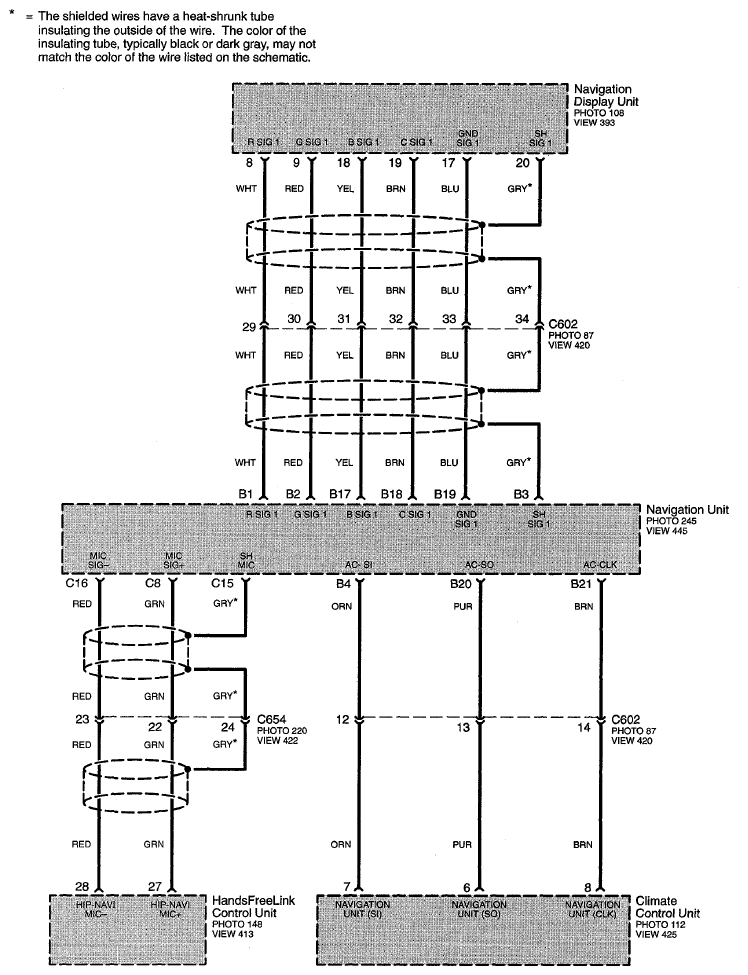

Fig 5: Navigation System Circuit Diagram (Page 156-4)

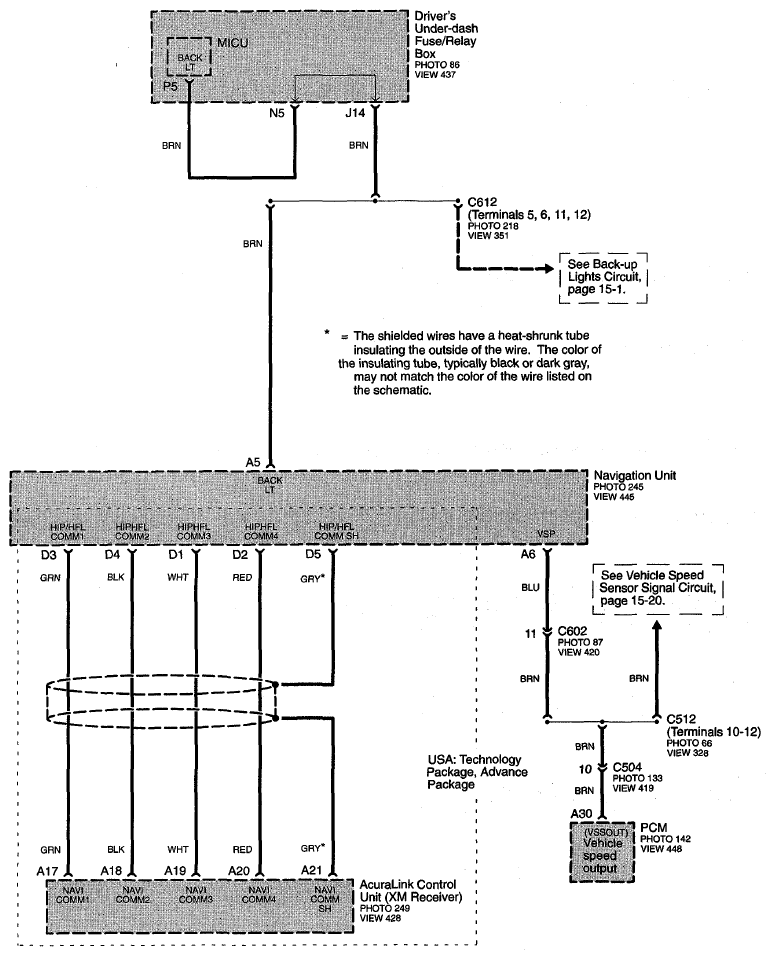

Fig 6: Navigation System Circuit Diagram (Page 156-5)

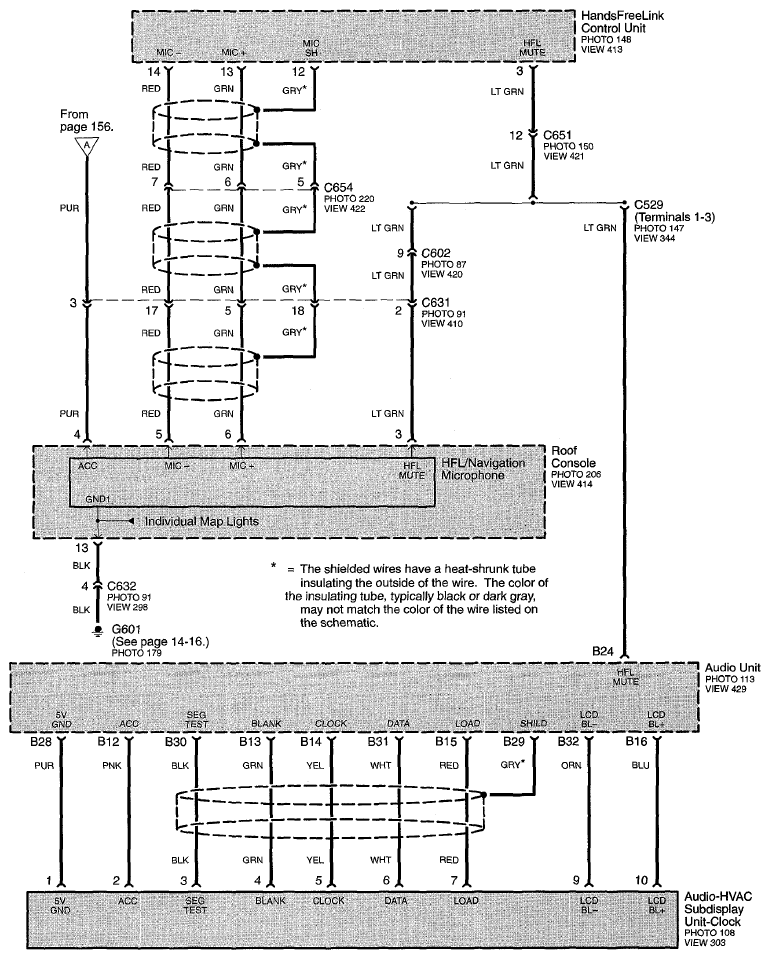

Fig 7: Navigation System Circuit Diagram (Page 156-6)

Fig 8: Navigation System Circuit Diagram (Page 156-7)
