Yaw Sensor

This screen gives a quick test of the yaw sensor functionality based on the two voltages Sensor and Offset. For more information see the YAW RATE  diagnostic.

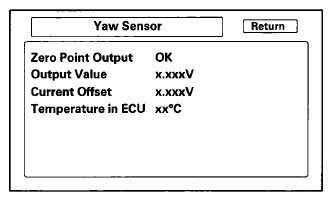

Fig 1: Identifying Yaw Sensor Display

Courtesy of AMERICAN HONDA MOTOR CO., INC.
