AcuraLink Control Unit (XM Receiver) Connector for Inputs and Outputs: Notes

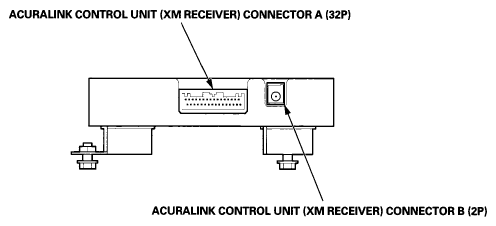

Fig 1: Identifying Acuralink Control Unit (XM Receiver) Connector (32P)

G07364020

Courtesy of AMERICAN HONDA MOTOR CO., INC.
