Shift Lever Installation

  1. Install the shift lever assembly.

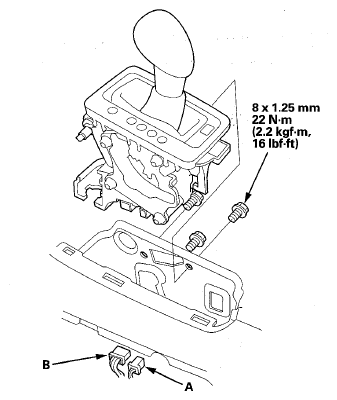

    Fig 1: Shift Lock Solenoid And Park Pin Switch/AFT Gear Position Indicator Panel Light Connectors With Torque Specifications
    G08051145Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the shift lock solenoid connector (A) and the park pin switch/A/T gear position indicator panel light connector (B).
  3. Install the shift cable on the shift lever, and adjust the shift cable (see step  5).
