Selector Control Shaft Bearing Replacement

Special Tools Required

• Bearing Remover, 10 mm 07936-GE0A000
• Remover Handle 07936-3710100
• Slide Hammer 07936-371020A
• Driver Handle, 15 x 135L 07749-0010000
• Attachment, 22 x 24 mm 07746-001A800

1. Remove the control shaft bearing from the transmission housing using the bearing remover (10 mm), the remover handle, and the sliding hammer weight.

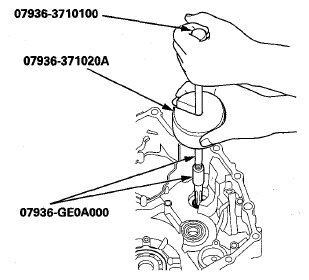

   Fig 1: Removing Control Shaft Bearing From Transmission Housing Using Bearing Remover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install a new bearing in the transmission housing using the driver handle (15 x 135L) and the attachment (22 x 24 mm).

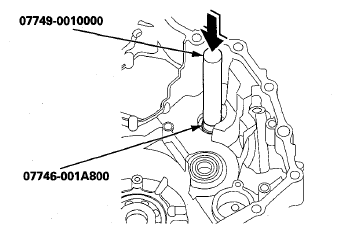

   Fig 2: Installing Bearing In Transmission Housing Using Driver Handle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
