EVAP Canister Purge Nozzle Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the air bypass outlet pipe (see CHARGE AIR COOLER REMOVAL AND INSTALLATION ).
  3. Disconnect the hoses (A).

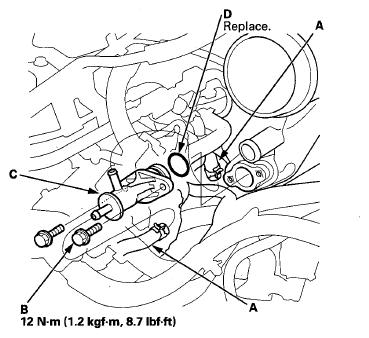

    Fig 1: Hoses, EVAP Canister Purge Nozzle, O-Ring And Bolts With Torque Specifications
    G08059821Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (B), then remove the EVAP canister purge nozzle (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
