Transmission Mount Replacement

Loosen the upper torque rod mounting bolt (A).

Fig 1: Identifying Upper Torque Rod Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the heater hoses from the clamps (A), then remove the bolt (B) securing the heater hose clamp bracket.

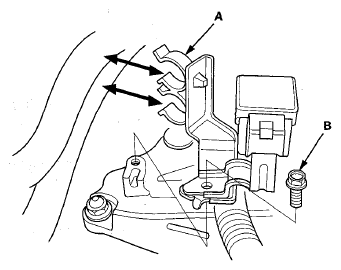

Fig 2: Removing Heater Hoses From Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Support the transmission with a jack and wood block under the transmission.
Remove the harness clamps (A), then remove the transmission mount stiffener (B) and transmission mount (C).

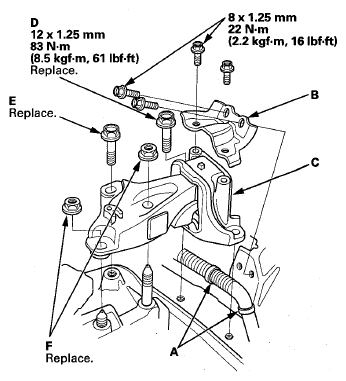

Fig 3: Harness Clamps, Transmission Mount Stiffener And Transmission Mount With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the transmission mount with the new transmission mount mounting bolts (D), then install the transmission mount stiffener and the harness clamps.
Loosely install the new transmission mount mounting bolt (E) and nuts (F) on the transmission case.
Raise the vehicle on the lift.
Loosen the lower torque rod mounting bolt (A).

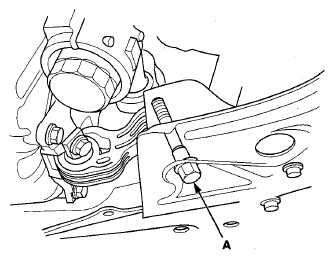

Fig 4: Identifying Lower Torque Rod Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle on the lift.
Tighten the transmission mount mounting bolt and nuts.

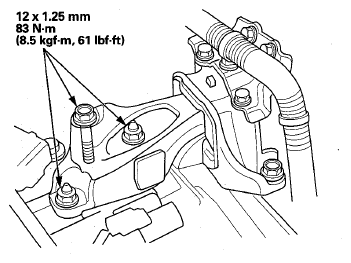

Fig 5: Transmission Mount Mounting Bolt And Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on the lift.
Tighten the lower torque rod mounting bolt.

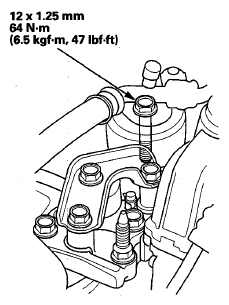

Fig 6: Lower Torque Rod Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle on the lift.
Install heater hose clamp bracket (A), then install the heater hoses to the clamps (B).

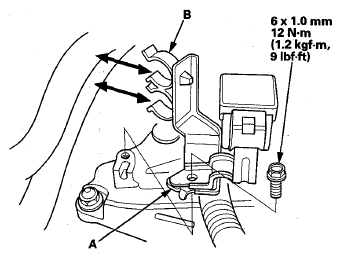

Fig 7: Heater Hose Clamp Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Tighten the upper torque rod mounting bolt.

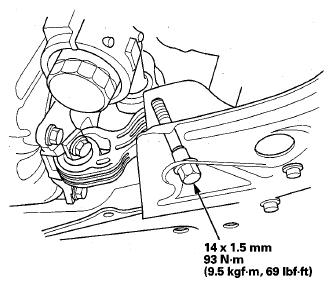

Fig 8: Upper Torque Rod Mounting Bolt With Torque Specifications
