Component Location Index
Component Location Index

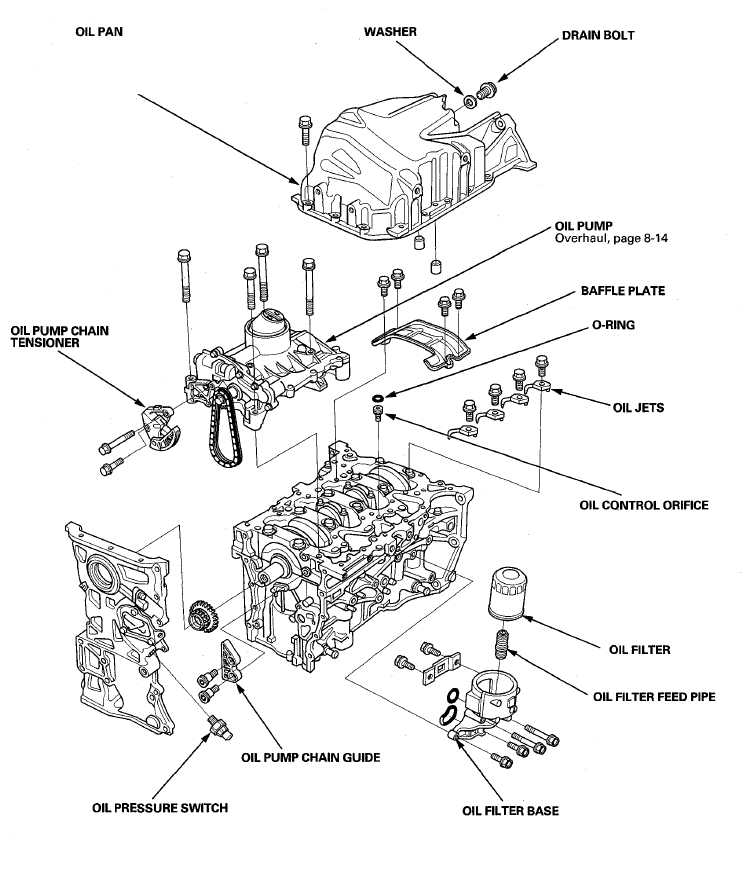

Fig 1: Engine Lubrication System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
