Component Location Index
Component Location Index

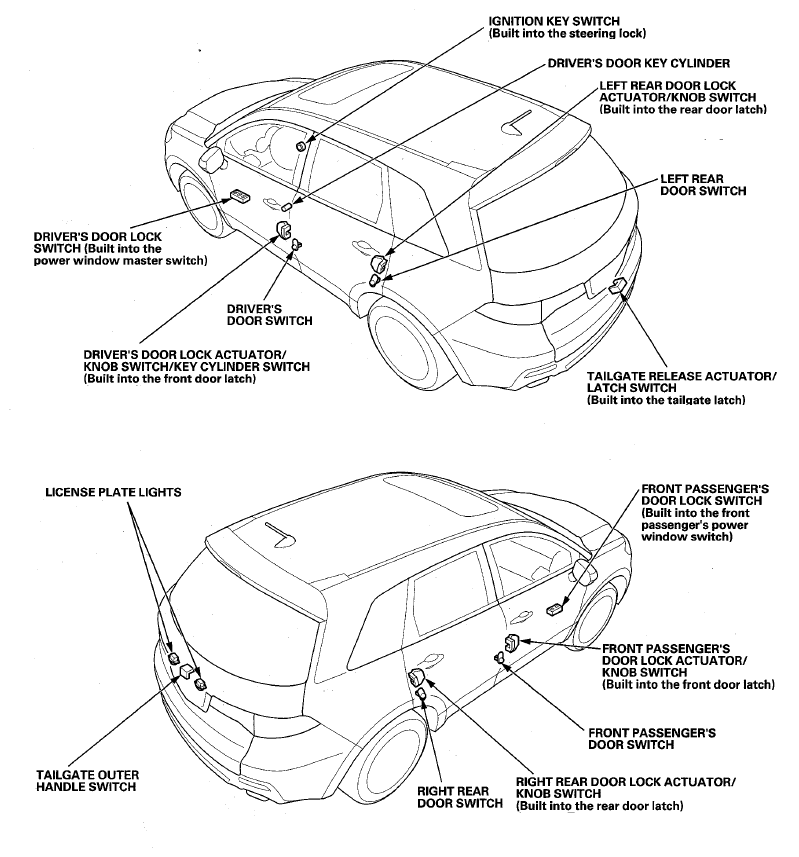

Fig 1: Keyless/Power Door Locks/Security System Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Keyless/Power Door Locks/Security System Components Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
