Brake Pedal Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the harness clip (A).

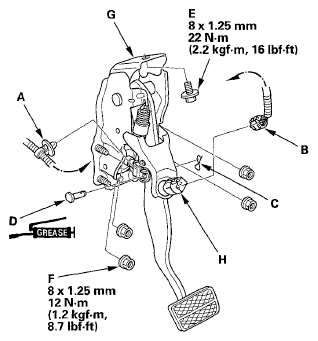

    Fig 1: Brake Pedal Bracket Mounting Bolts & Nuts With Torque Specifications
    G05959220Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the brake pedal position switch connector (B).
  4. Remove the lock pin (C) and clevis pin (D).
  5. Remove the brake pedal bracket mounting bolt (E) and nuts (F).
  6. Remove the brake pedal with bracket (G).
  7. Remove the brake pedal position switch (H) by turning it counter clockwise.
  8. Install in the reverse order of removal.
  9. Adjust the brake pedal and brake pedal position switch (see PEDAL HEIGHT  ).
