Brake Booster Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner cover and the air cleaner case (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the master cylinder (see MASTER CYLINDER REPLACEMENT ).
Disconnect the brake booster vacuum hose (A) from the brake booster.

Fig 1: Identifying Brake Booster Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

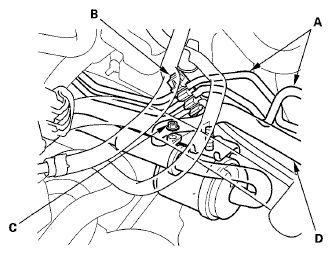

Remove the brake lines (A) from the clamp (B).

Fig 2: Identifying Brake Lines, Clamp, Nut & Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the nut (C) on the canister and move the hose (D) out of the way.
Remove the engine wire harness clamp (A).

Fig 3: Identifying Engine Wire Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the driver's dash board undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).

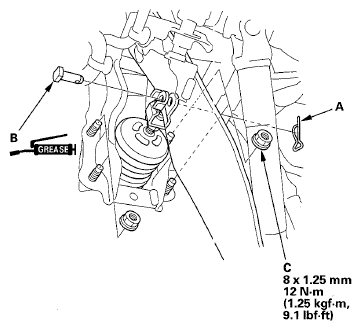

Remove the lock pin (A) and 1 he clevis pin (B), then disconnect the yoke from the brake pedal.

Fig 4: Lock Pin & Clevis Pin With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake booster mounting nuts (C).
Remove the brake booster (A) from the engine compartment.
NOTE:
- Be careful not to damage the booster surfaces and threads of the booster stud bolts.
- Be careful not to bend or damage the brake lines.
NOTE: Use new booster gasket (B) during reassembly.

Fig 5: Identifying Brake Booster & Booster Gasket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the brake booster in the reverse order of removal, and note these items:
- Install the master cylinder after installing the brake booster (see MASTER CYLINDER REPLACEMENT ).
- Check the brake pedal height and free play after installing the master cylinder, and adjust it if necessary (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ).
- Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
