Front Bank (Bank 2)

  1. Disconnect the front A/F sensor 6P connector (A), then remove the A/F sensor (B).

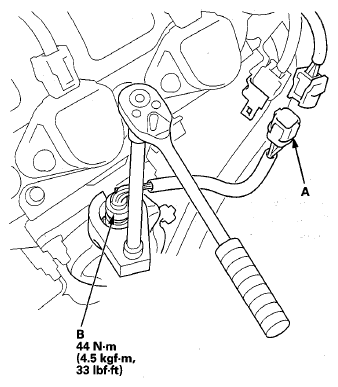

    Fig 1: Identifying Front A/F Sensor 6P Connector
    G08057173Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the parts in the reverse order of removal.
