Exploded View

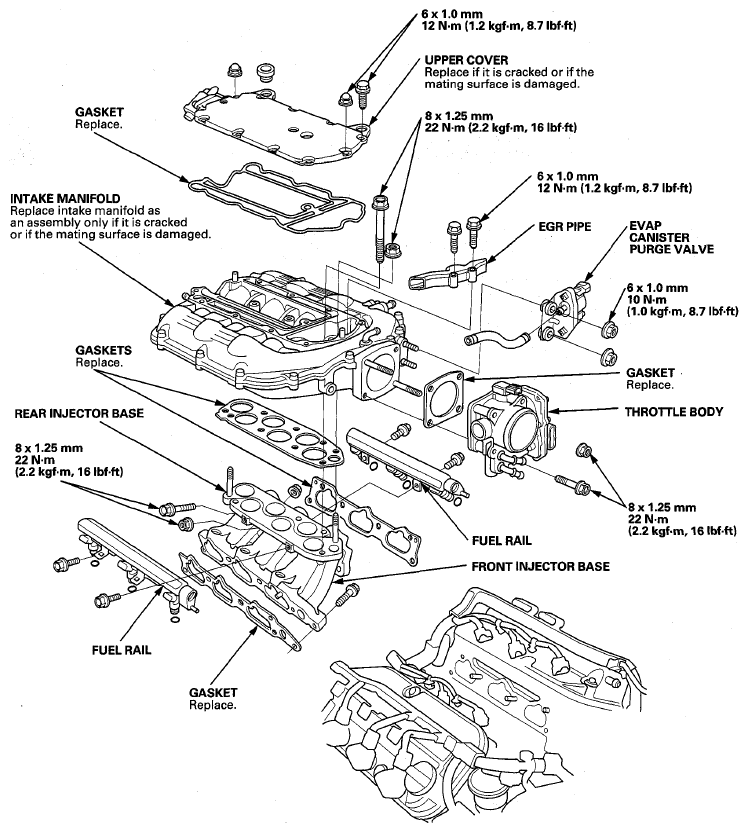

Fig 1: Exploded View Of Intake Manifold

G08052363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the EXPLODED VIEW if needed during this procedure.
