DASHLIGHTS Brightness Controller
>>
Circuit Diagram
Circuit Diagram

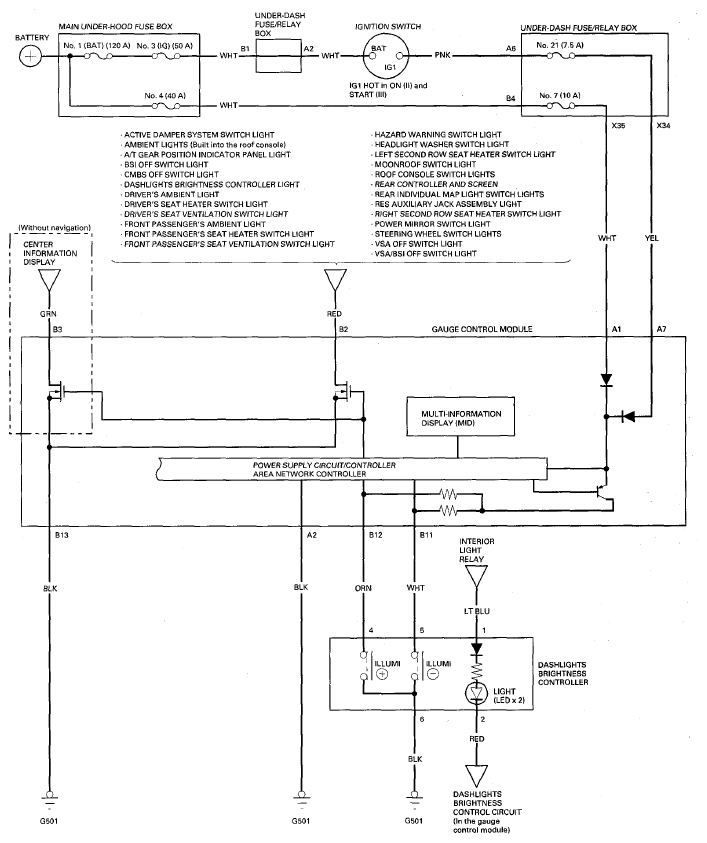

Fig 1: Dashlights Brightness Controller Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
