Center Console Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), and wait at least 3 minutes before beginning work.
2. Remove these items:
   • Driver's inner dashboard trim (see DRIVER'S INNER DASHBOARD TRIM REMOVAL/INSTALLATION )
   • Passenger's dashboard trim (see CENTER POCKET REMOVAL/INSTALLATION )
   • Center console rear trim (see CENTER CONSOLE REAR TRIM REMOVAL/INSTALLATION  )
   • Front seats, both sides (see FRONT SEAT REMOVAL/INSTALLATION )
3. Detach the clips by pulling the console lower trim (A) back by hand, then remove it.
   Fig 1: Identifying Console Lower Trim And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Detach the clips (A, B) by pulling the driver's center console trim (C), then remove it.
   Fig 2: Identifying Driver's Center Console Trim And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Detach the clips (A, 6) by pulling the passenger's center console trim (C) out, and pull it forward to release its pin (D) from the center console, then remove it.
   Fig 3: Identifying Passenger's Center Console Trim And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. From driver's side, disconnect the shift lock solenoid/park pin switch/A/T gear position indicator panel light connector (A), and ground bolt.
   Fig 4: Shift Lock Solenoid Replacement Components With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. From passenger's side, disconnect the console subharness connectors (A).
   Fig 5: Identifying Console Subharness Connectors

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. With seat ventilation: Remove the seat ventilation control unit (see CONTROL UNIT INPUT TEST/REPLACEMENT ).
9. With E-pretensioner: Remove the E-pretensioner unit (see E-PRETENSIONER UNIT REPLACEMENT ).
10. Disconnect the HandsFreeLink control unit connector (A), and detach the harness clips (B).
    Fig 6: Identifying HandsFreelink Control Unit Connector And Harness Clips

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Open the beverage holder lid. Pull the beverage holder inner case (A) up by hand to detach the clips, then remove it.
    Fig 7: Identifying Beverage Holder Inner Case And Clips

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Shift the shift lever into the R position, then disconnect the A/T shift cable (see step 5 under SHIFT CABLE REPLACEMENT ).

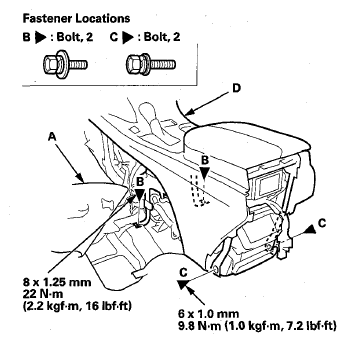

13. Pull back the carpet (A) as needed, then remove the bolts (B, C) securing the center console (D).
    Fig 8: Center Console, Carpet And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

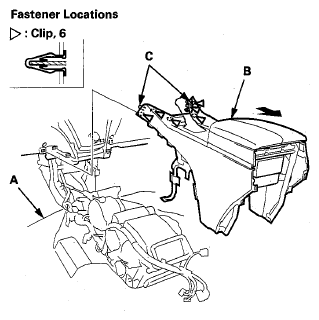

14. Pull back the carpet (A) as needed. Slide the center console (B) backward to detach the clips and pins (C) from the dashboard, lift the console up, then carefully remove it.
    Fig 9: Identifying Carpet, Center Console, Clips And Pins

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Install the console in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
    • Before tightening the bolts, make sure the dashboard wire harness is not pinched.
    • Make sure the connectors are plugged in properly.
    • Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
    • Check for any DTCs that may have been set during repairs, and clear them.
    • If necessary, adjust the shift cable (see SHIFT CABLE ADJUSTMENT ).
