Center Console Latch Panel Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the console.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the center console armrests from both sides (see CONSOLE ARMREST REMOVAL/INSTALLATION ).
Remove the screws, and starting at the rear, pull out the center console latch panel (A) to detach the clips, then remove it.

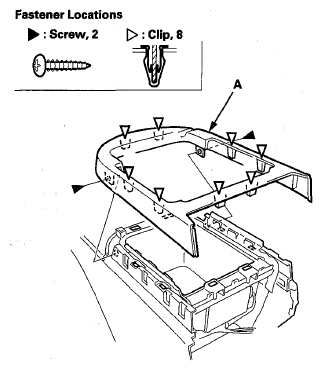

Fig 1: Identifying Center Console Latch Panel And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
