Rear Mode Control Motor Connector End View

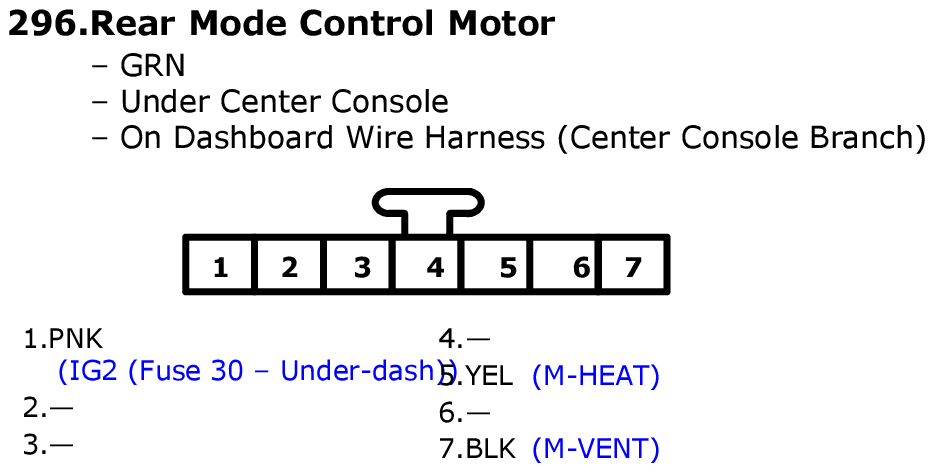

Fig 1: Rear Mode Control Motor Connector End View

GHHW8158

Courtesy of AMERICAN HONDA MOTOR CO., INC.
