Rear Fuse/Relay Box Connector End View

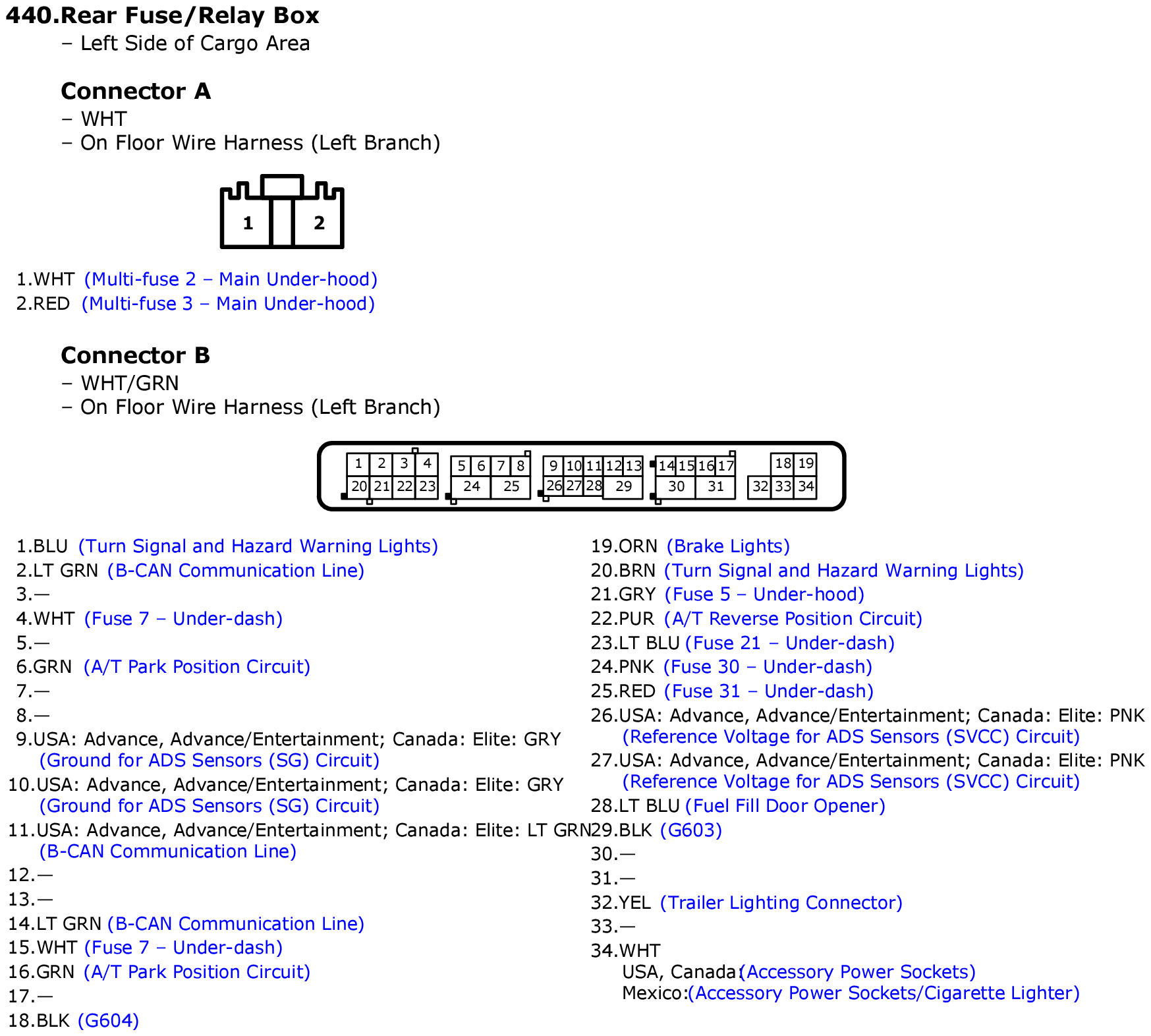

Fig 1: Rear Fuse/Relay Box Connector End View

GHHW8301

Courtesy of AMERICAN HONDA MOTOR CO., INC.
