Power Tailgate Driver Unit Connector End View
Power Tailgate Driver Unit Connector End View

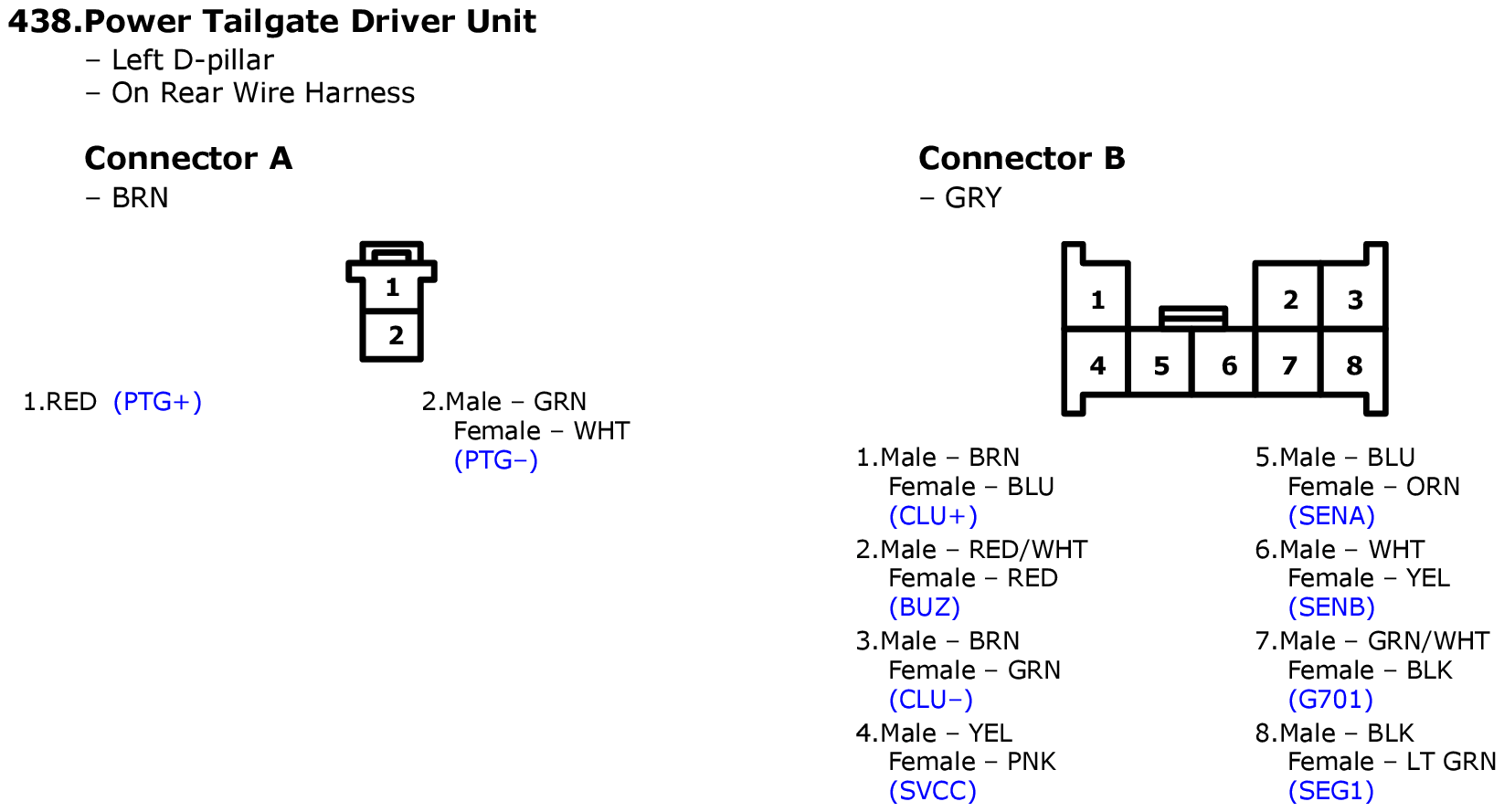

Fig 1: Power Tailgate Driver Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
