Interface Dial (except Base) Connector End View

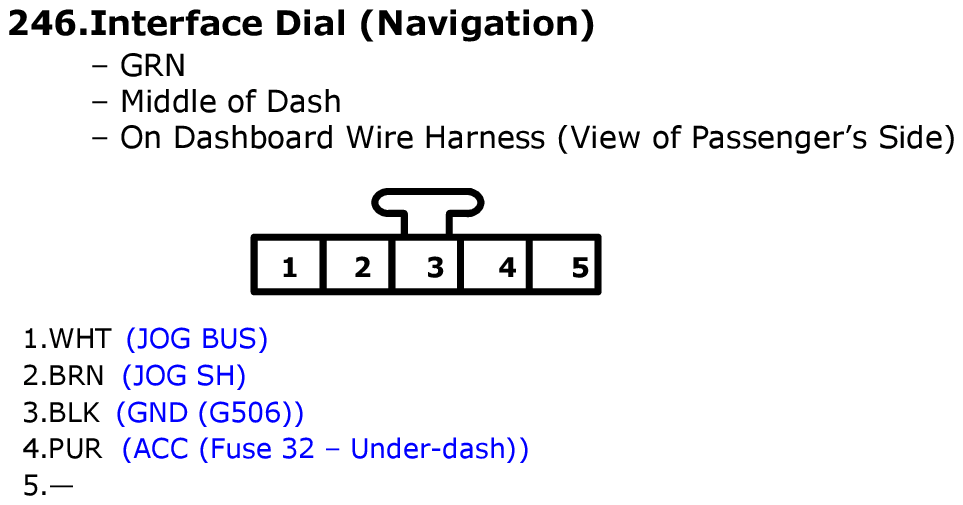

Fig 1: Interface Dial (except Base) Connector End View

GHHW8110

Courtesy of AMERICAN HONDA MOTOR CO., INC.
