CMBS OFF Switch Connector End View
CMBS OFF Switch Connector End View

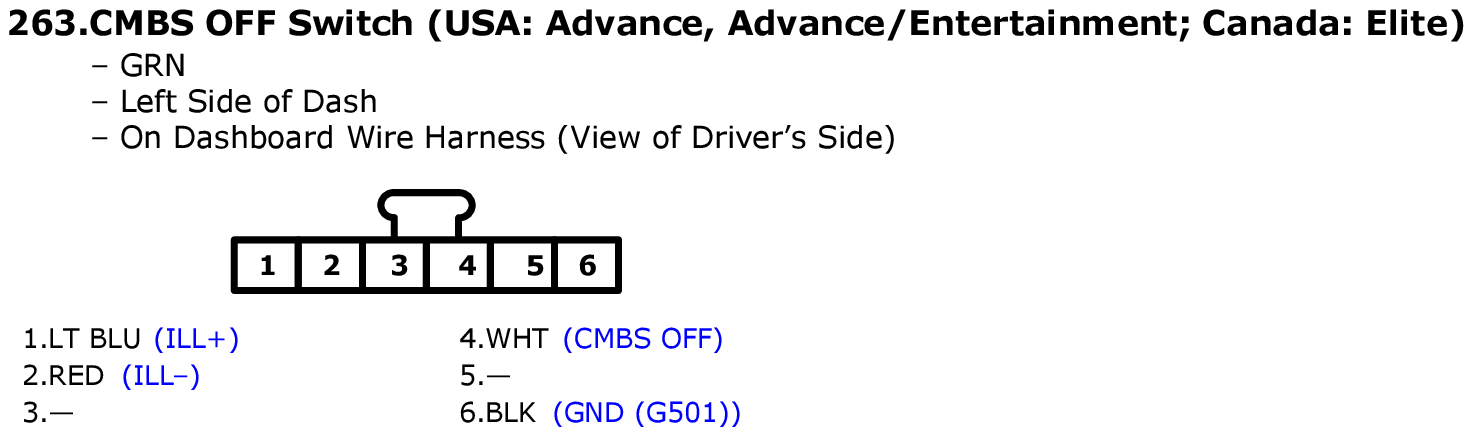

Fig 1: CMBS OFF Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
