Audio Unit (Base) Connector End View

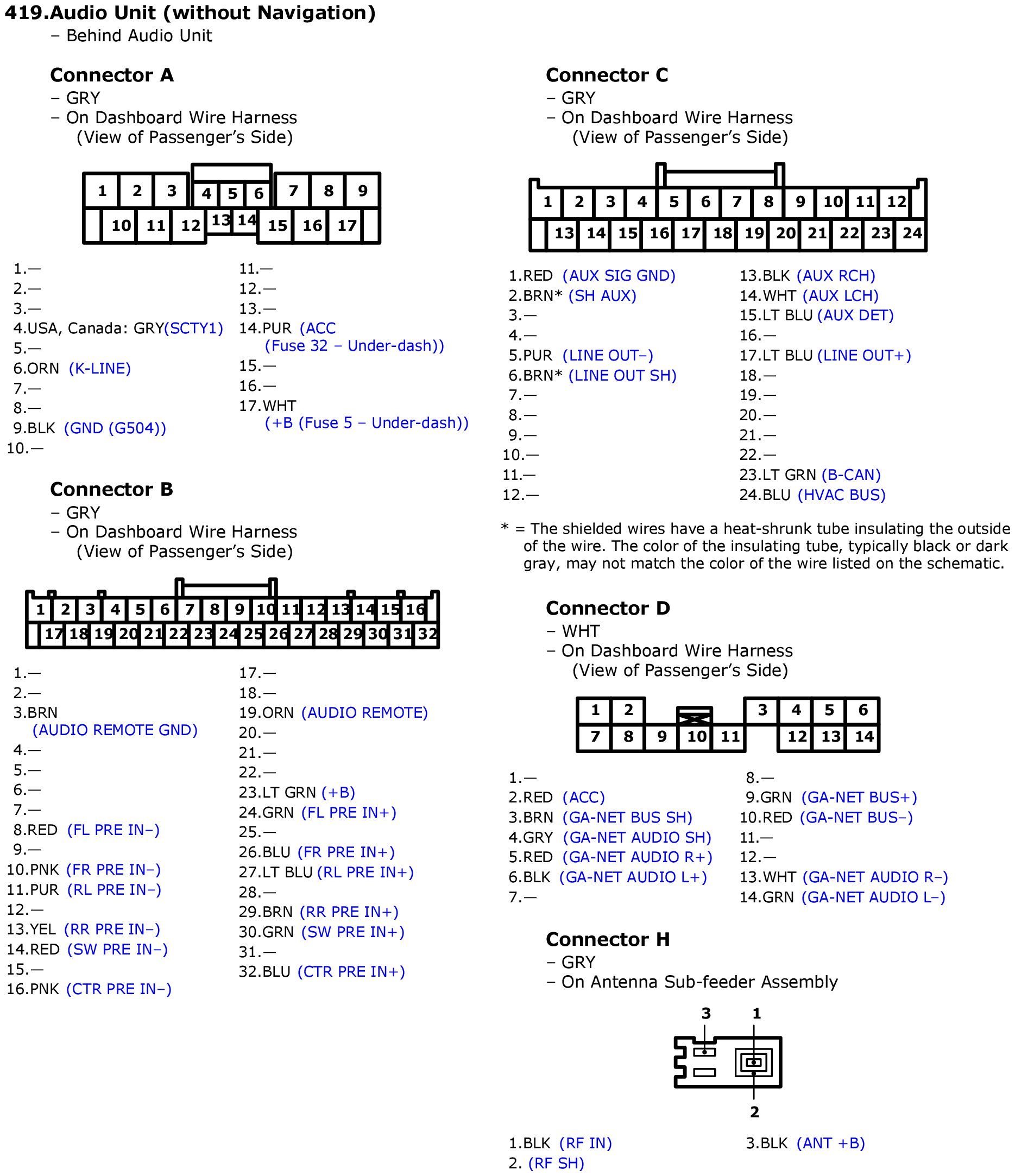

Fig 1: Audio Unit (Base) Connector End View

GHHW8280

Courtesy of AMERICAN HONDA MOTOR CO., INC.
