Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Battery Management System
>>
Circuit Diagram
Circuit Diagram

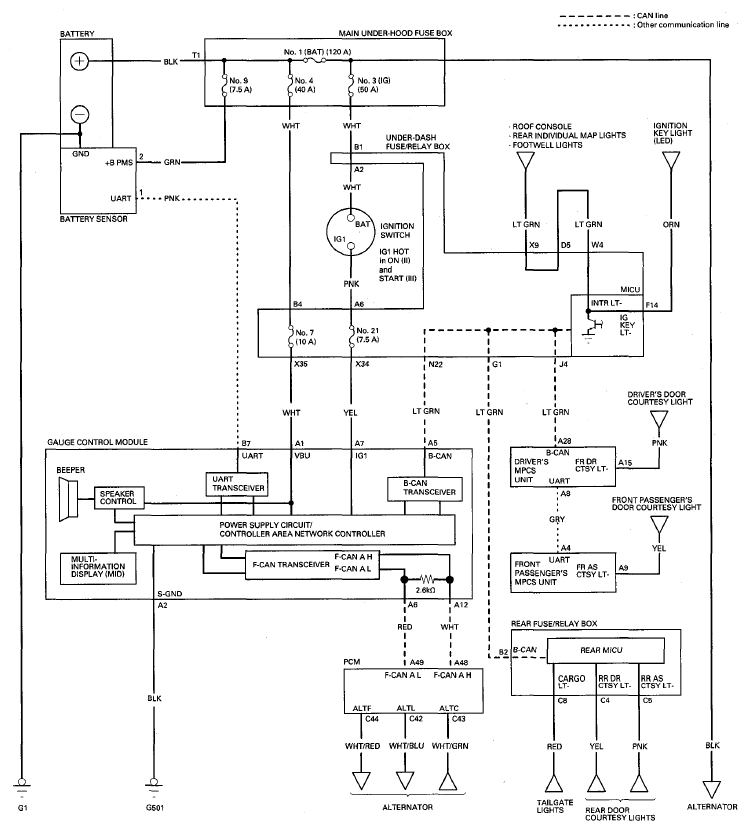

Fig 1: Battery Management System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
