Component Location Index

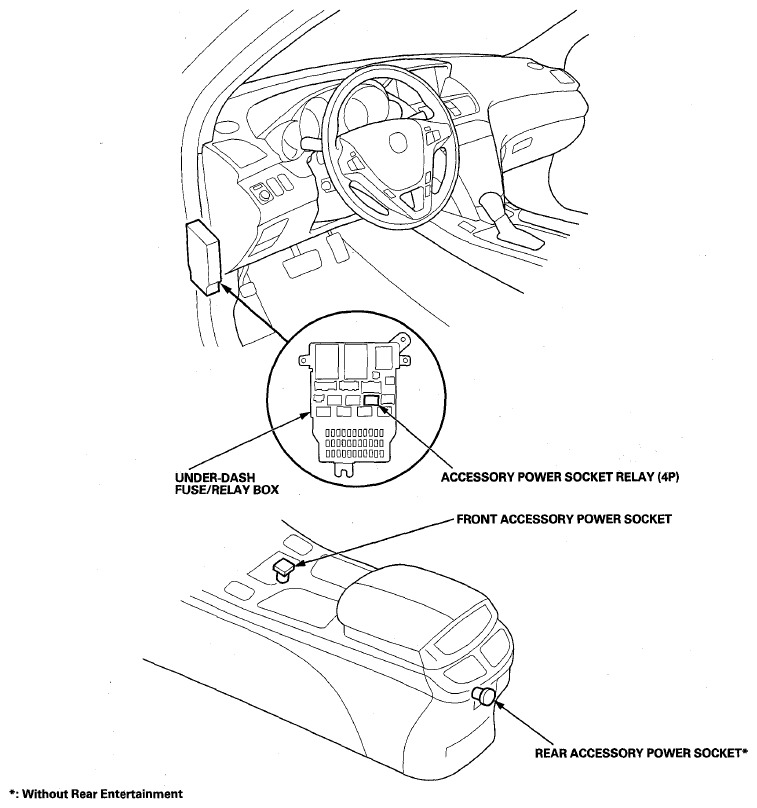

Fig 1: Identifying Accessory Power Sockets Components Location (1 Of 2)
G08053801Courtesy of AMERICAN HONDA MOTOR CO., INC.

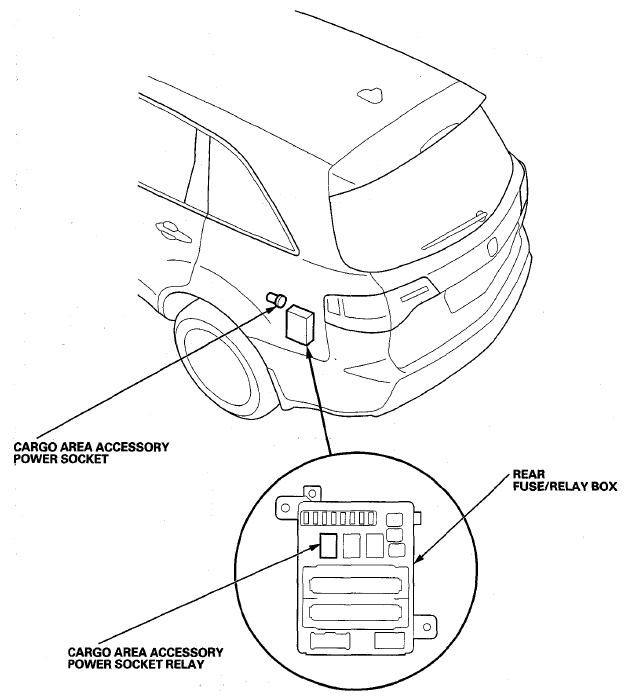

Fig 2: Identifying Accessory Power Sockets Components Location (2 Of 2)
G08053802Courtesy of AMERICAN HONDA MOTOR CO., INC.
