Rearview Mirror With Rearview Camera Display Input Test/Replacement
NOTE:
The normal operating temperature range of the rearview mirror with rearview camera display is -22°F to 176°F (-30°C to 80°C). Allow the inside temperature of the vehicle to stabilize within the normal operating range before testing.
- Turn the ignition switch to ON (II).

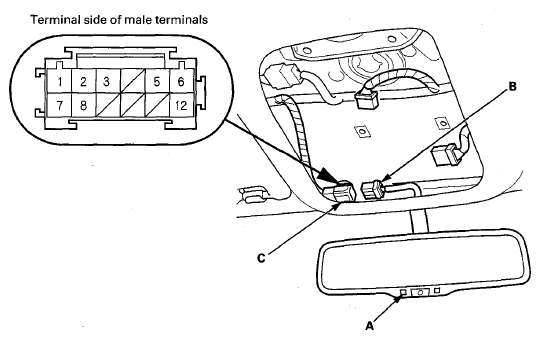

- Check the auto dimming inside mirror indicator (A). If the indicator flashes 2 times, and then turns on, there is a malfunction in the mirror. Replace it.
- Turn the ignition switch to LOCK (0).
- Remove the roof console ROOF CONSOLE INPUT TEST/REPLACEMENT ).
- Disconnect the 12P connector (B) from the roof wire harness (C).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 7.
- Remove the tailgate lower trim panel TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
- With the connector still disconnected, do the following input tests:NOTE: Make sure the connector is connected while testing terminals 12, 5, and 6. Make sure the connector is disconnected while testing terminals 3, 8, 2, 1, and 7.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If the input tests prove OK. Substitute and connect a known-good rearview camera and check the monitor image in reverse. If the symptom is gone, the rearview camera is faulty; replace it (see VOICE CONTROL SWITCH REPLACEMENT ). If the symptom is still present, the rearview mirror is faulty; replace it.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 12 | BLK | In all ignition switch positions | Measure the voltage between terminal No. 12 and body ground: There should be less than 0.2 V. |
|
| 5 | PNK | Ignition switch ON (II) | Measure the voltage between terminal No. 5 and body ground: There should be battery voltage. |
|
| 6 | BRN | Ignition switch ON (II) and the transmission range switch in R position | Measure the voltage between terminal No. 6 and body ground: There should be battery voltage. |
|
| 3 | WHT | Disconnect the rearview camera 6P connector | Check for continuity between terminal No. 3 and rearview camera 6P connector terminal No. 6: There should be continuity. | An open or high resistance in the wire |
| Check for continuity between terminal No. 3 and body ground: There should be no continuity. | A short to ground in the wire | |||
| 8 | GRN | Disconnect the rearview camera 6P connector | Check for continuity between terminal No. 8 and rearview camera 6P connector terminal No. 4: There should be continuity. | An open or high resistance in the wire |
| Check for continuity between terminal No. 8 and body ground: There should be no continuity. | A short to ground in the wire | |||
| 2 | RED | Disconnect the rearview camera 6P connector | Check for continuity between terminal No. 2 and rearview camera 6P connector terminal No. 5: There should be continuity. | An open or high resistance in the wire |
| Check for continuity between terminal No. 2 and body ground: There should be no continuity. | A short to ground in the wire | |||
| 1 | BLK | Disconnect the rearview camera 6P connector | Check for continuity between terminal No. 1 and rearview camera 6P connector terminal No. 3: There should be continuity. | An open or high resistance in the wire |
| Check for continuity between terminal No. 1 and body ground: There should be no continuity. | A short to ground in the wire | |||
| 7 | GRY | Disconnect the rearview camera 6P connector | Check for continuity between terminal No. 7 and rearview camera 6P connector terminal No. 2: There should be continuity. | An open or high resistance in the wire |
