HFL Switch Replacement

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove these items:
   • Driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
   • Steering wheel (see STEERING WHEEL REMOVAL ).
   • Paddle shifter (see PADDLE SHIFTER REPLACEMENT ).
2. Remove the screws and the HFL switch (A).

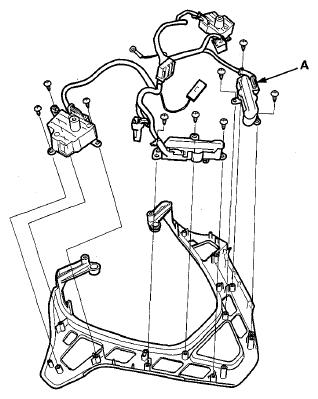

   Fig 1: Identifying HFL Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the HFL switch in the reverse order of removal.
