System Description
>>
System Diagram
>>
Without navigation
Without navigation

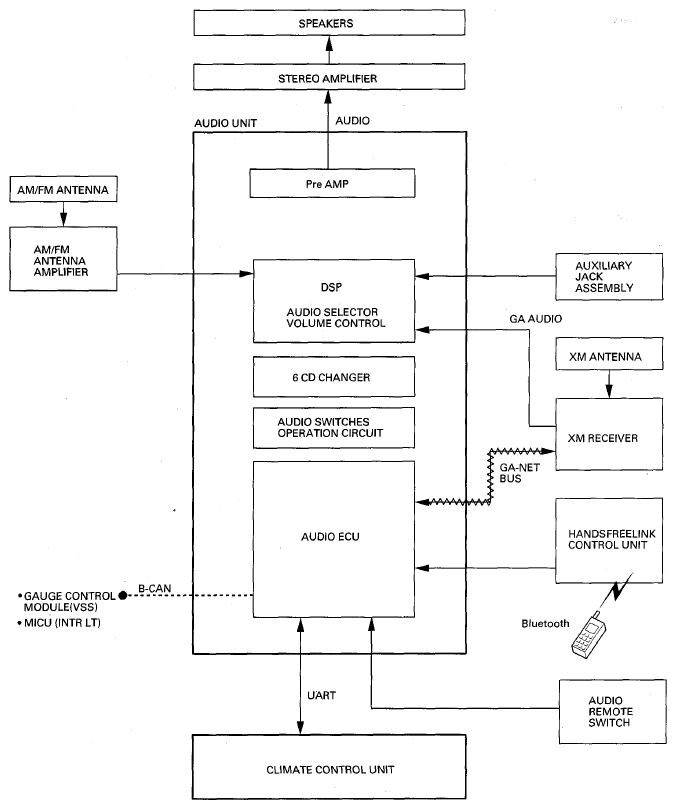

Fig 1: Audio - System Diagram (Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
