System Description
>>
System Diagram
>>
With navigation
With navigation

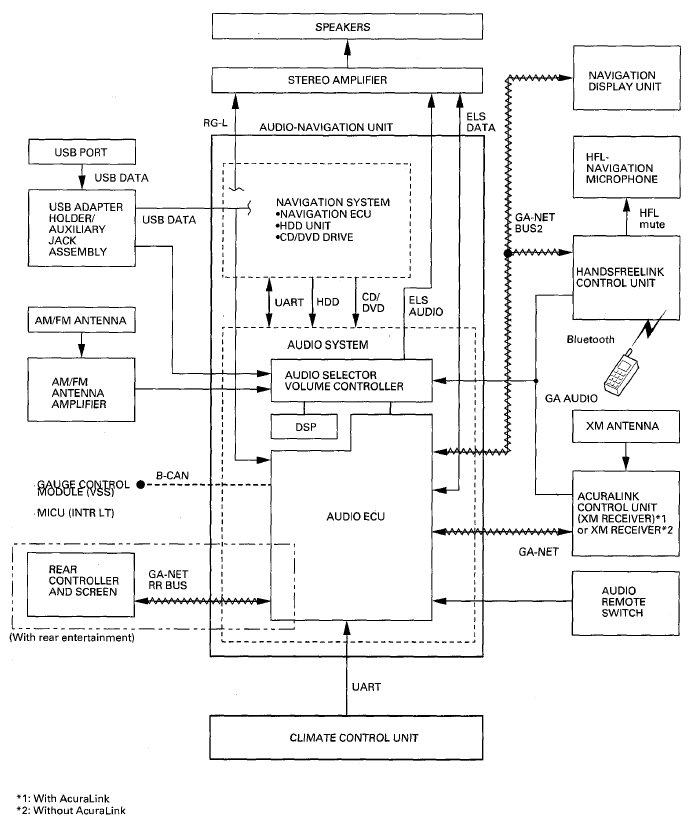

Fig 1: Audio - System Diagram (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
