Fuel Pump Control Module Connector End View
Fuel Pump Control Module Connector End View

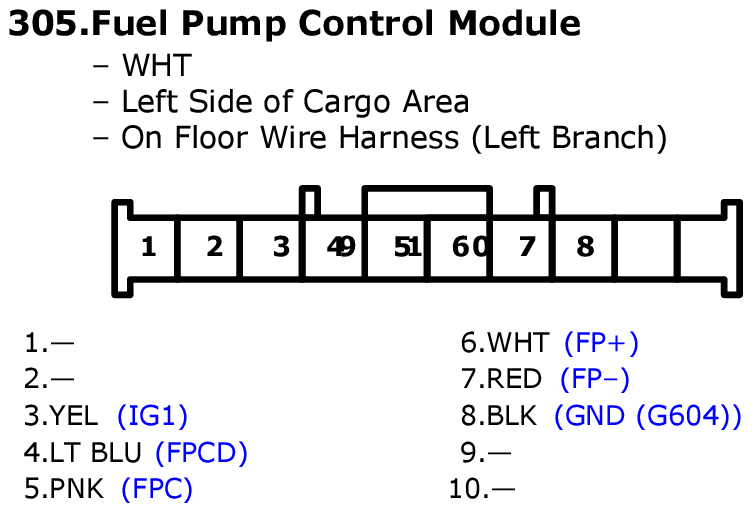

Fig 1: Fuel Pump Control Module Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
