Transmission Range Switch Replacement

  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  3. Remove the intake air duct (see step  8 on TRANSMISSION REMOVAL ).
  4. Remove the battery heat shield (see step  9 on TRANSMISSION REMOVAL ).
  5. Remove the auxiliary under-hood fuse/relay box (see step  10 on TRANSMISSION REMOVAL ).
  6. Remove the battery base (see step  11 on TRANSMISSION REMOVAL ).
  7. Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the control lever (D).

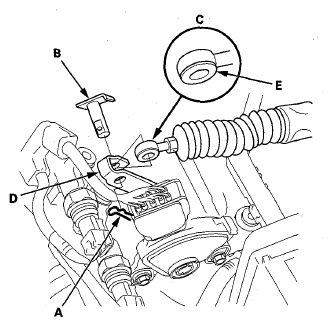

    Fig 1: Locating Spring Clip, Control Pin, Shift Cable End And Control Lever
    G08074787Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Check the bushing (E) in the shift cable end for a proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT  ).
  9. Disconnect the transmission range switch connector.
  10. Remove the nuts (A) securing the shift cable bracket (B).

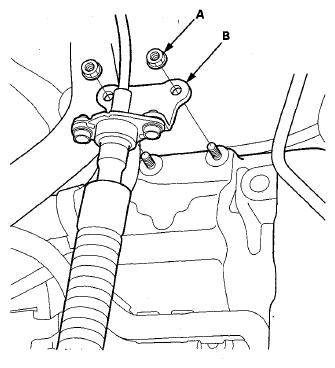

    Fig 2: Locating Nuts And Shift Cable Bracket
    G08074788Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the transmission range switch.
    Fig 3: Identifying Transmission Range Switch
    G08074789Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Turn the control lever fully counterclockwise to the P position. Turn the control lever back two click-stopped positions so that the selector control shaft is in the N position.
    Fig 4: Turning Control Lever P Position To N Position
    G08074790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Set a new transmission range switch (A) to the N position. Align the cutouts (B) on the rotary-frame with the neutral positioning cutouts (C) on the transmission range switch, then put a 2.0 mm (0.079 in) feeler gauge blade (D) in the cutouts to hold the transmission range switch in the N position.
    NOTE: Be sure to use a 2.0 mm (0.079 in) feeler gauge blade or equivalent to hold the transmission range switch in the N position.
    Fig 5: Aligning Cutouts On Rotary-Frame With Neutral Positioning Cutouts On Transmission Range Switch
    G08074791Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.079 in) blade (C).
    Fig 6: Locating Transmission Range Switch, Selector Control Shaft And 2.0 mm (0.08 in) Blade
    G08074792Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Tighten the bolts on the transmission range switch while you continue to hold the N position. Do not move the transmission range switch when tightening the bolts. Then remove the feeler gauge.
    Fig 7: Bolts And Transmission Range Switch With Torque Specifications
    G08074793Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Check the connectors for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  17. Install the shift cable bracket (A).

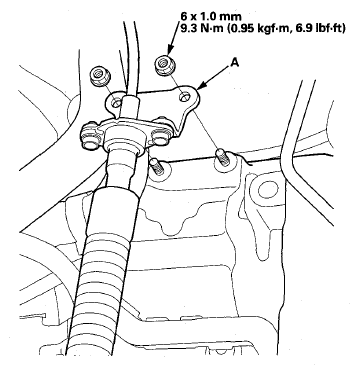

    Fig 8: Locating Shift Cable Bracket And Nuts With Torque Specifications
    G08074794Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Apply molybdenum grease to the hole in the bushing (A) in the shift cable end (B).

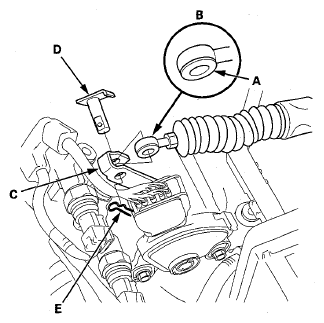

    Fig 9: Locating Bushing And Shift Cable End
    G08074795Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Attach the shift cable end to the control lever (C), then insert the control pin (D) into the control lever hole through the shift cable end, and secure the control pin with the spring clip (E).
  20. Install the battery base (see step  66 on TRANSMISSION INSTALLATION ).
  21. Install the auxiliary under-hood fuse/relay box (see step  67 on TRANSMISSION INSTALLATION ).
  22. Install the battery heat shield (see step  68 on TRANSMISSION INSTALLATION ).
  23. Install the intake air duct (see step  69 on TRANSMISSION INSTALLATION ).
  24. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  25. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  26. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. Move the shift lever through all positions, and verify the transmission range switch matches with the A/T gear position indicator.
  27. Check that the engine starts in P and N, and does not start in any other shift lever position.
  28. Check that the back-up lights come on when the shift lever is in R.
  29. Raise the vehicle on a lift, make sure it is securely supported, and allow all four wheels to rotate freely. Then start the engine, and check the shift lever operation.
