Radiator Replacement
- Drain the engine coolant (see COOLANT REPLACEMENT
).
- Remove the bulkhead cover (see
FRONT BULKHEAD COVER REPLACEMENT
).
- Do the battery removal procedure (see
BATTERY REMOVAL AND INSTALLATION
).
- Remove the battery base (see step 10
ENGINE REMOVAL
).
- Remove the A/C condenser fan shroud assembly, (see A/C CONDENSER FAN SHROUD REMOVAL
).
- Remove the radiator fan shroud assembly (see RADIATOR FAN SHROUD REMOVAL
).
- Disconnect the lower radiator hose (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the power steering hose clamp (B).
- Disconnect the ATF cooler hoses (C) from the transmission, then plug the ATF cooler hoses and the lines.
- Disconnect the ATF cooler hoses (A), then plug the ATF cooler hoses and the lines.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

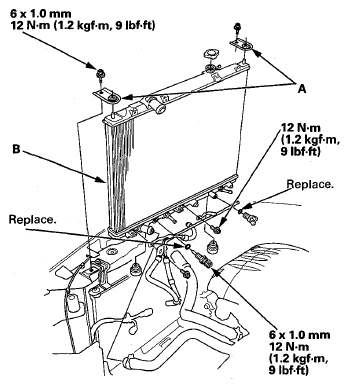

- Remove the radiator upper brackets (A), then pull up the radiator (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the other parts from the radiator.
- Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely.
- Install the battery base (see step 54 under
ENGINE INSTALLATION
).
- Do the battery installation procedure (see
BATTERY REMOVAL AND INSTALLATION
).
- Refill the transmission with ATF (see
ATF LEVEL CHECK
).
- Fill the radiator with engine coolant, and bleed the air from the cooling system (see COOLANT CHECK
).
- Clean up any spilled engine coolant.
