Starter Removal and Installation: Installation

Install the starter, then tighten the mounting bolts (A).
NOTE: Always use a new gasket.

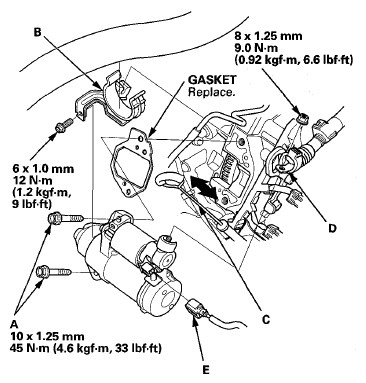

Fig 1: Positive Starter Cable And S Terminal Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lower radiator hose bracket (B) to the starter and install the dipstick (C).
Connect the positive starter cable (D) and the S terminal connector (E). Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
Install the battery base (see step 54 on ENGINE INSTALLATION ).
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
Start the engine to make sure the starter works properly.
