OEM Circuit Diagrams: VSA

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

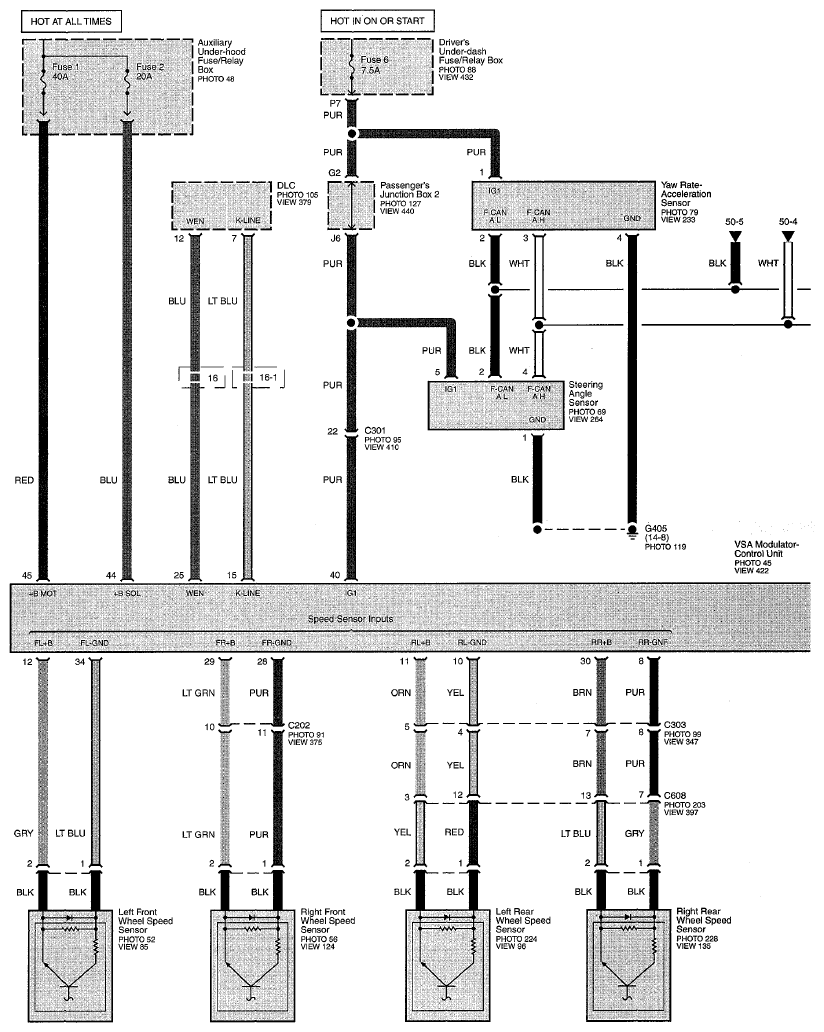

Fig 1: VSA Circuit Diagram (Page 36)
G07747809

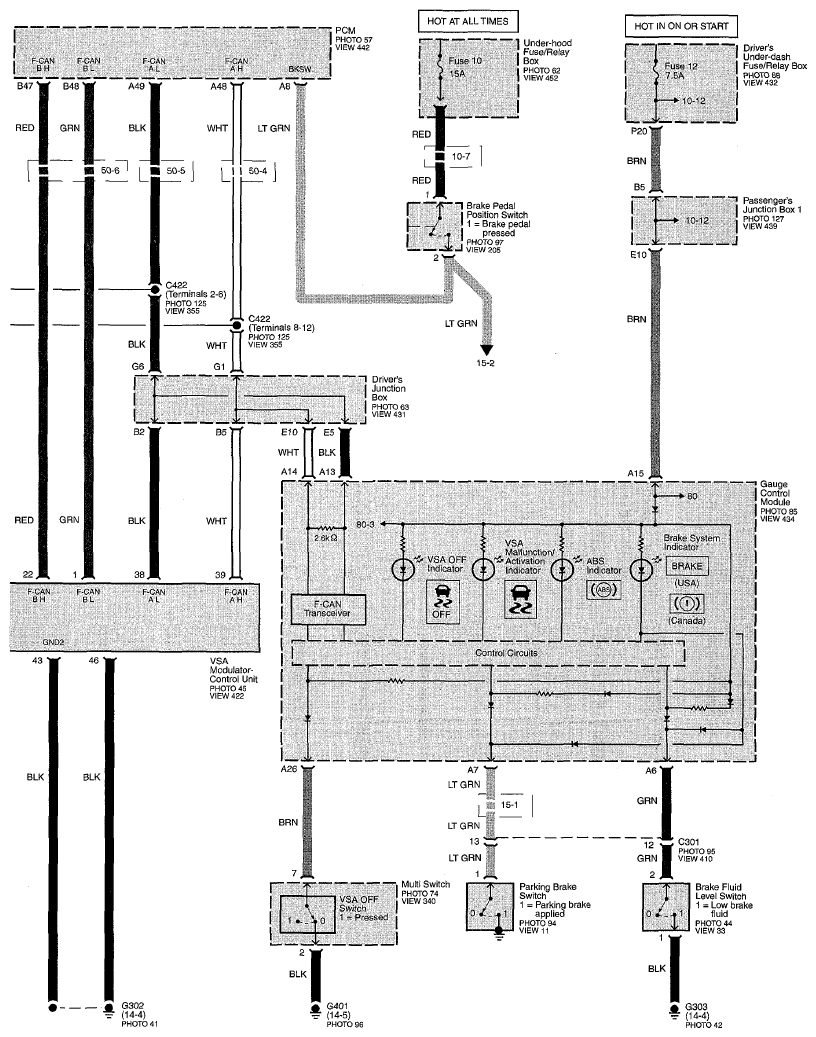

Fig 2: VSA Circuit Diagram (Page 36-1)
G07747810
