Safety Indicator

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

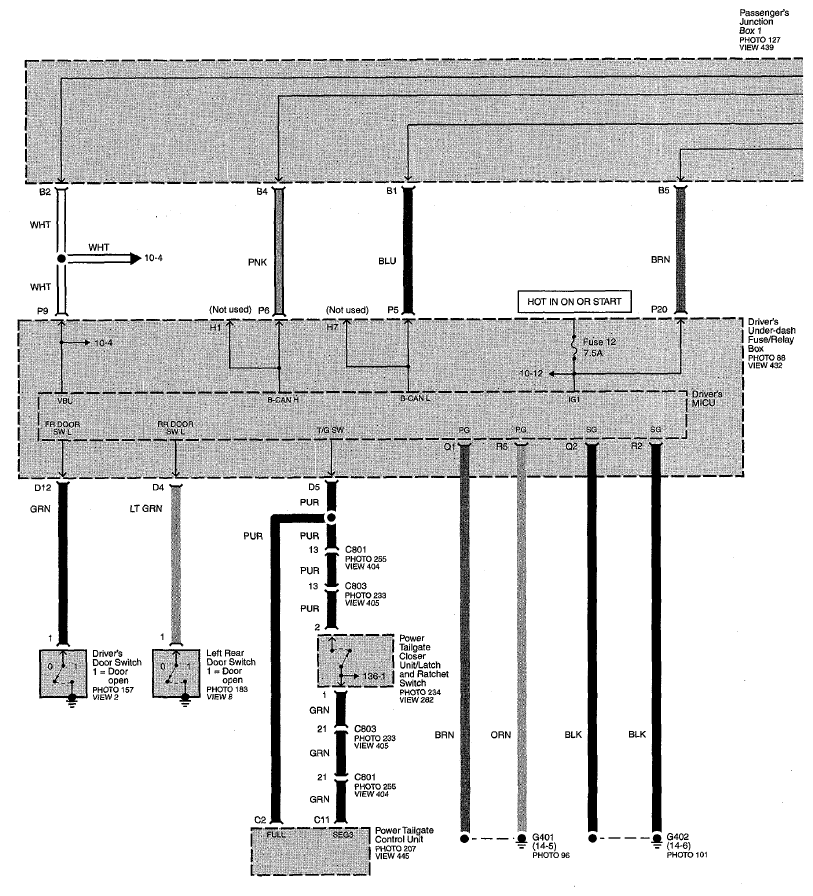

Fig 1: Safety Indicator Circuit Diagram (Page 84)
G07747859

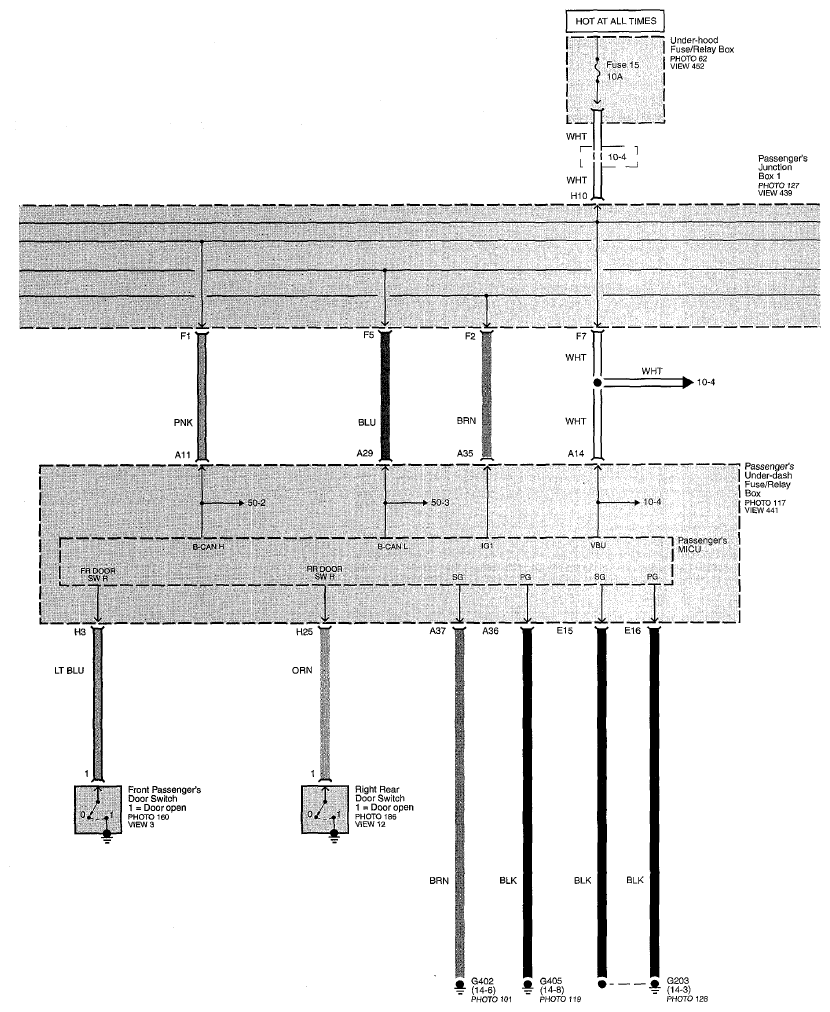

Fig 2: Safety Indicator Circuit Diagram (Page 84-1)
G07747860

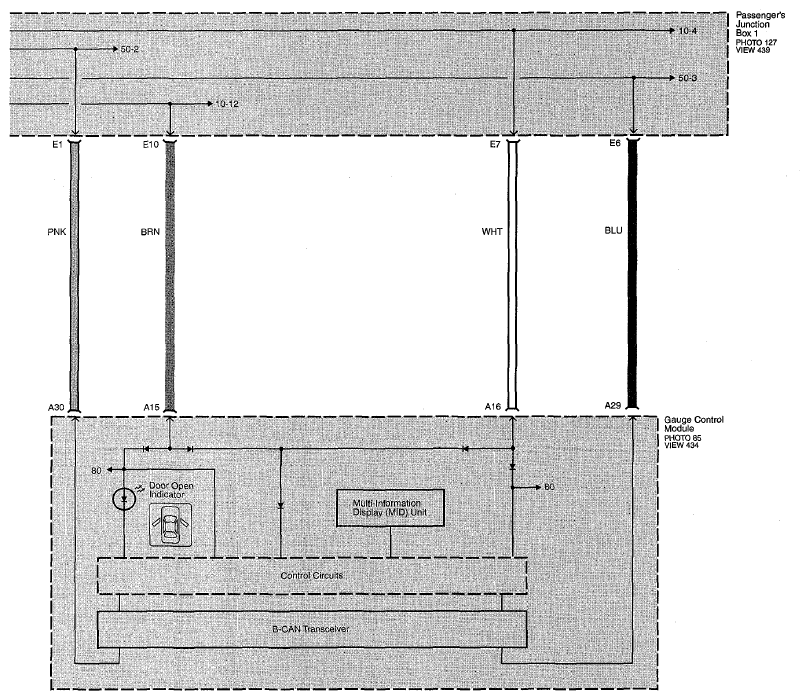

Fig 3: Safety Indicator Circuit Diagram (Page 84-2)
G07747861
