Power Tailgate

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

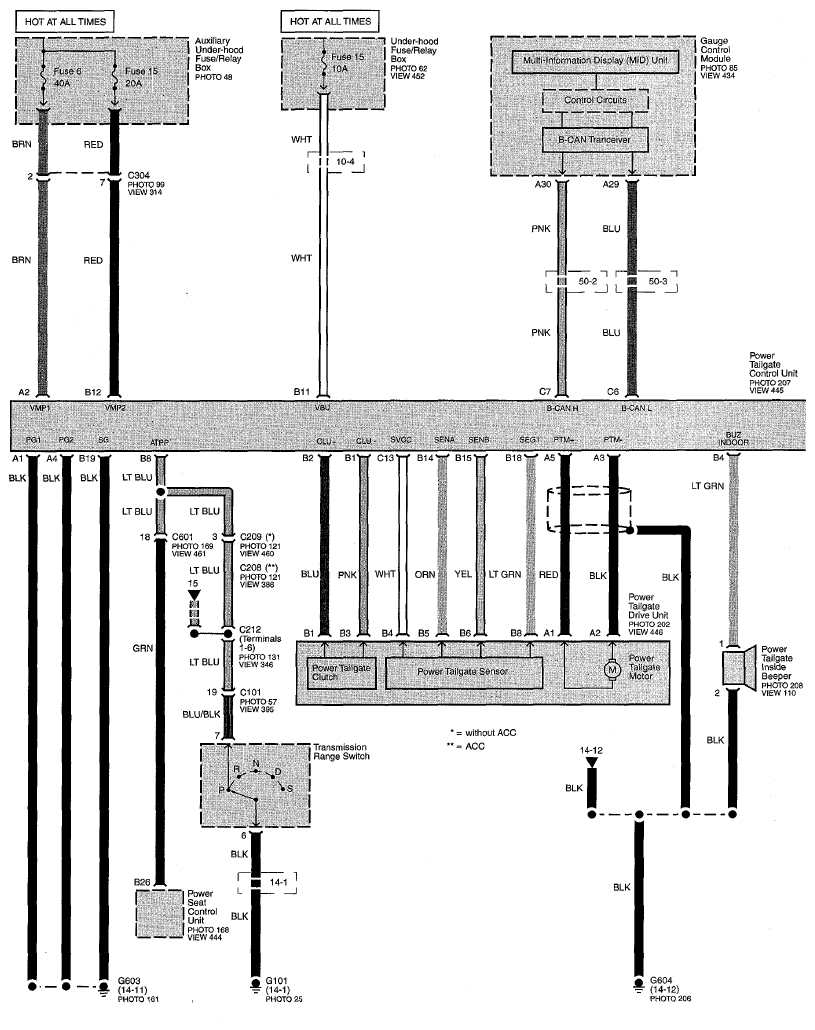

Fig 1: Power Tailgate Circuit Diagram (Page 136)
G07747940

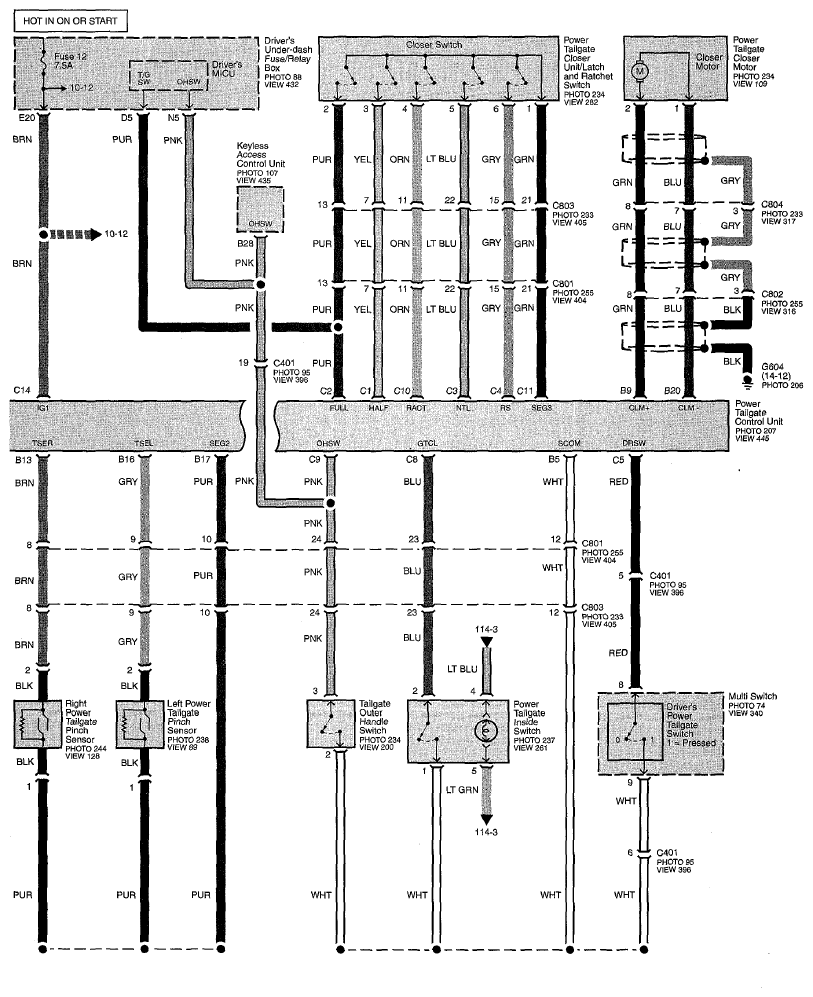

Fig 2: Power Tailgate Circuit Diagram (Page 136-1)
G07747941
