Panoramic Glass Roof: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

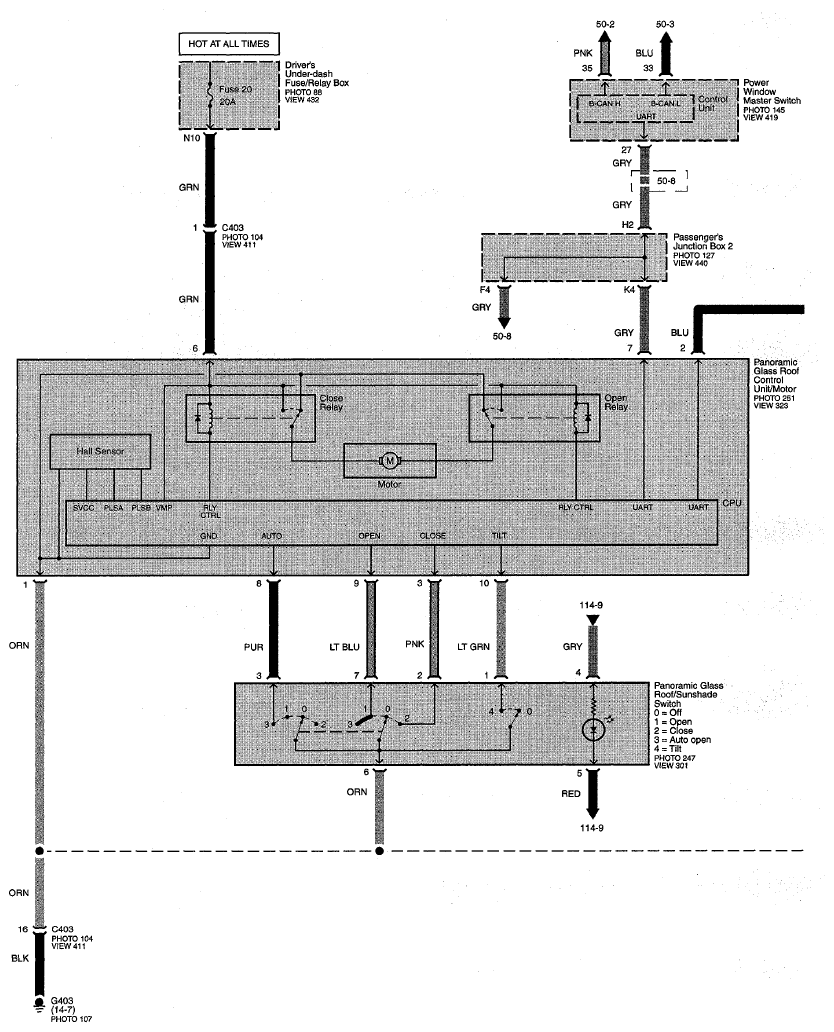

Fig 1: Panoramic Glass Roof Circuit Diagram (Page 122)
G07747916

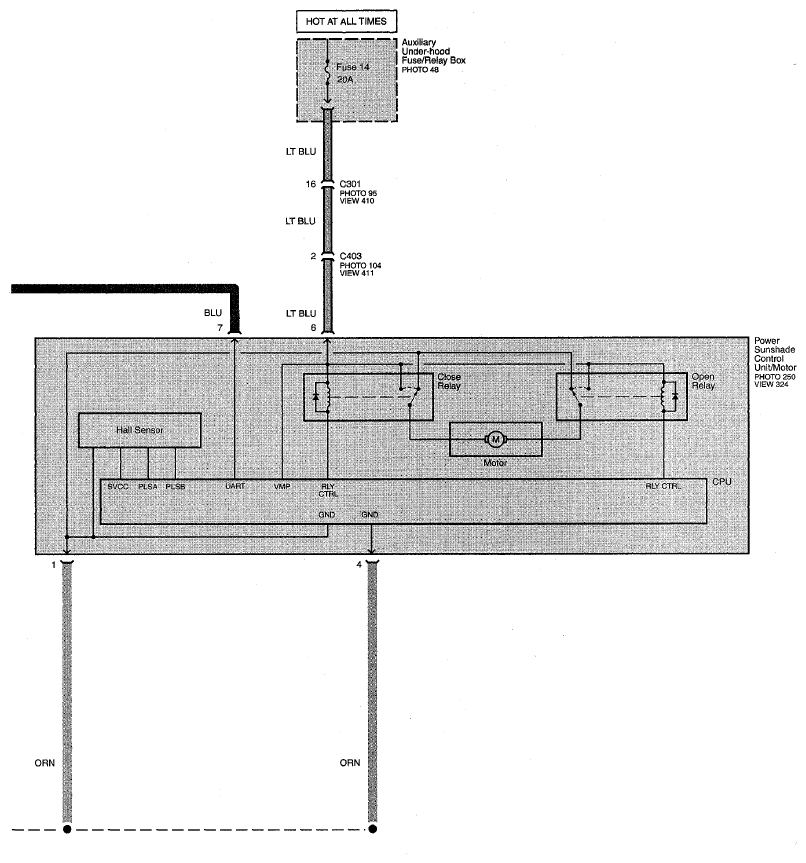

Fig 2: Panoramic Glass Roof Circuit Diagram (Page 122-1)
G07747917
