ZDX
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Multiplex Integrated Control System
>>
Power, Grounds, and Diagnostics
Power, Grounds, and Diagnostics

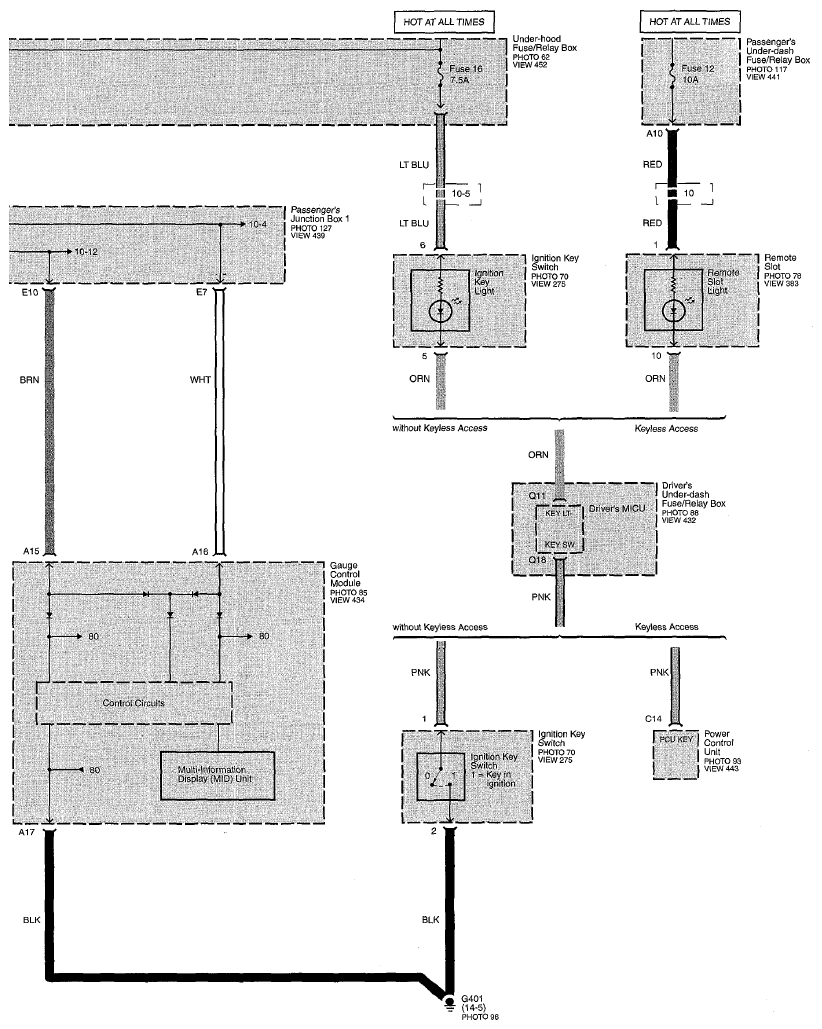

Fig 1: Power, Grounds, And Diagnostics Circuit Diagram (Page 50)

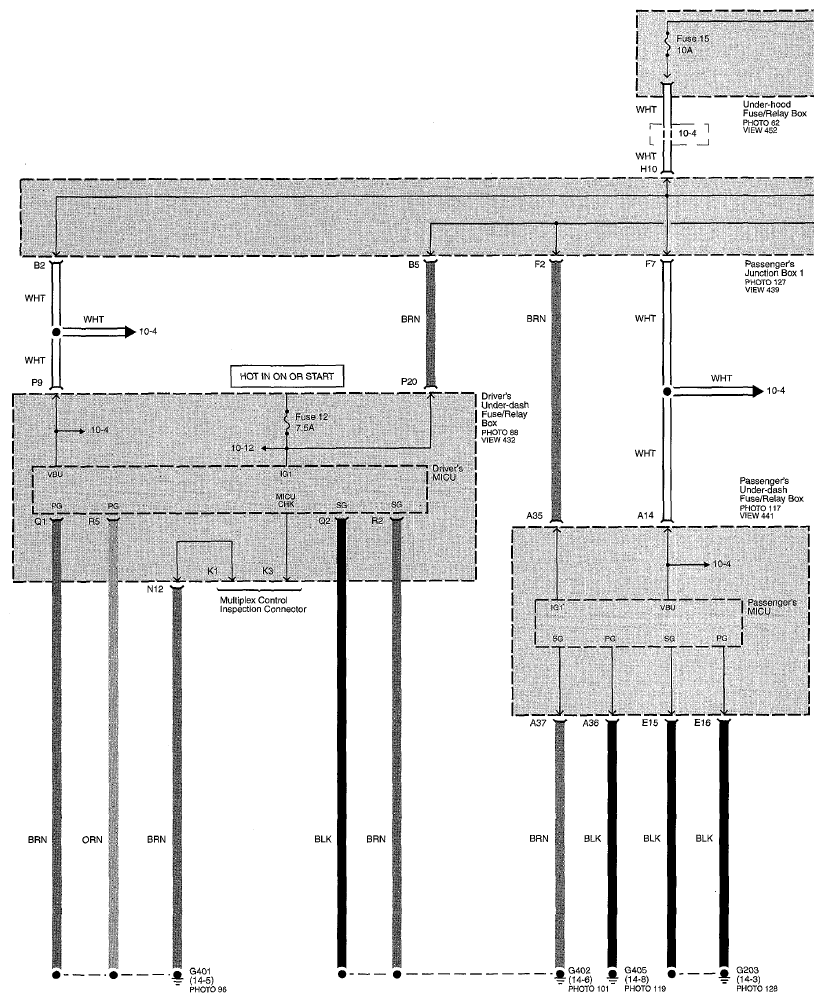

Fig 2: Power, Grounds, And Diagnostics Circuit Diagram (Page 50-1)
