OEM Circuit Diagrams: HVAC

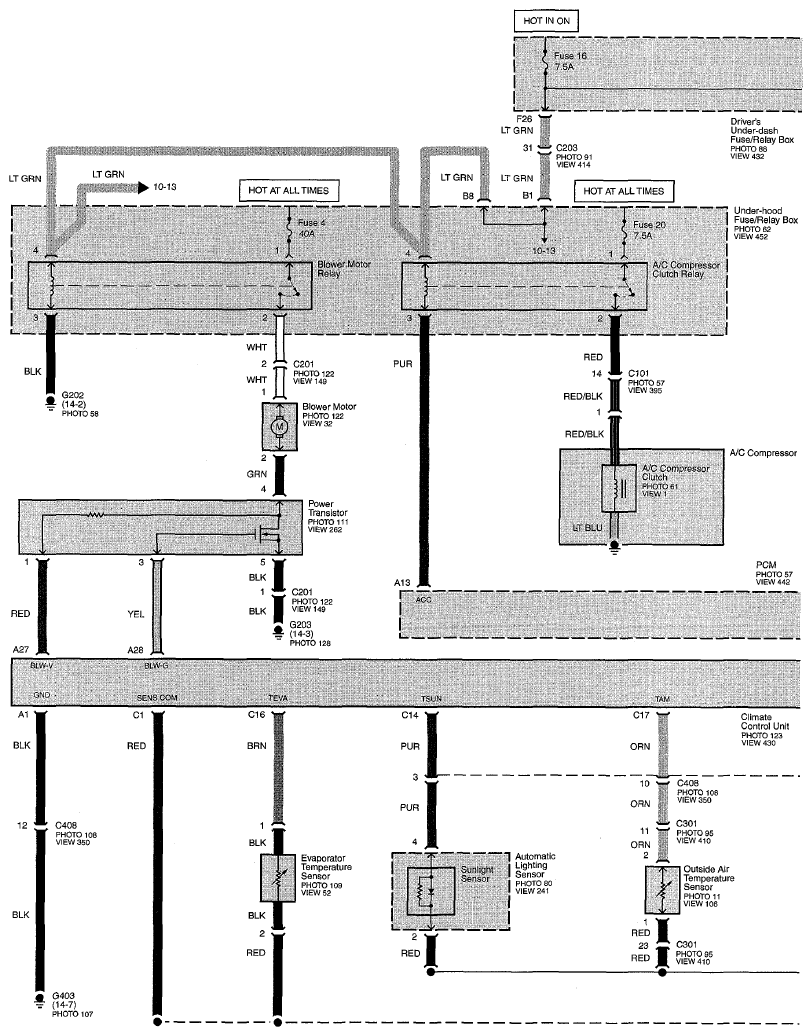

Fig 1: HVAC Circuit Diagram (Page 60)

G07747840

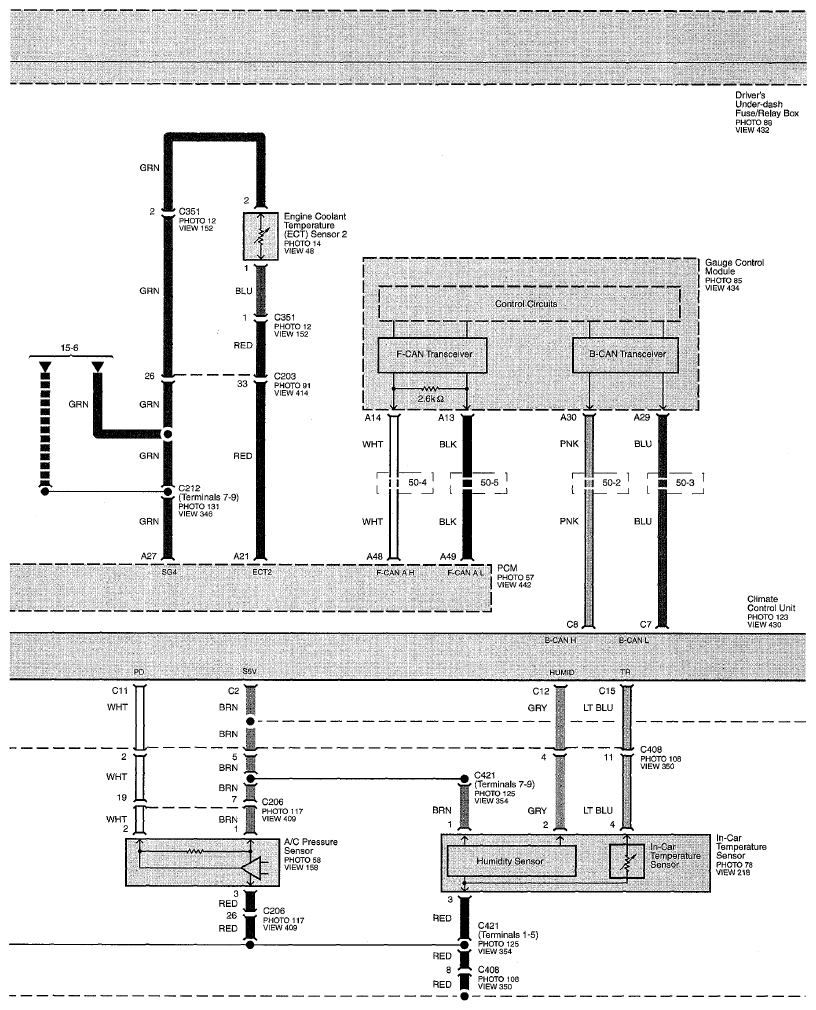

Fig 2: HVAC Circuit Diagram (Page 60-1)

G07747841

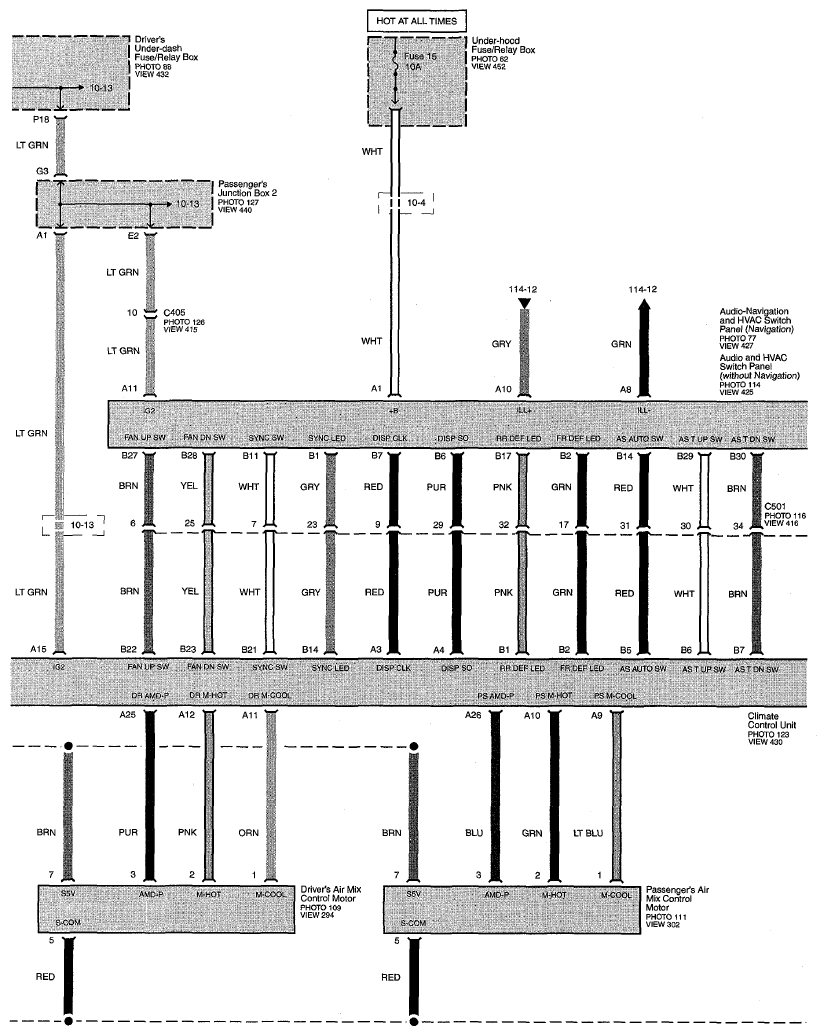

Fig 3: HVAC Circuit Diagram (Page 60-2)

G07747842

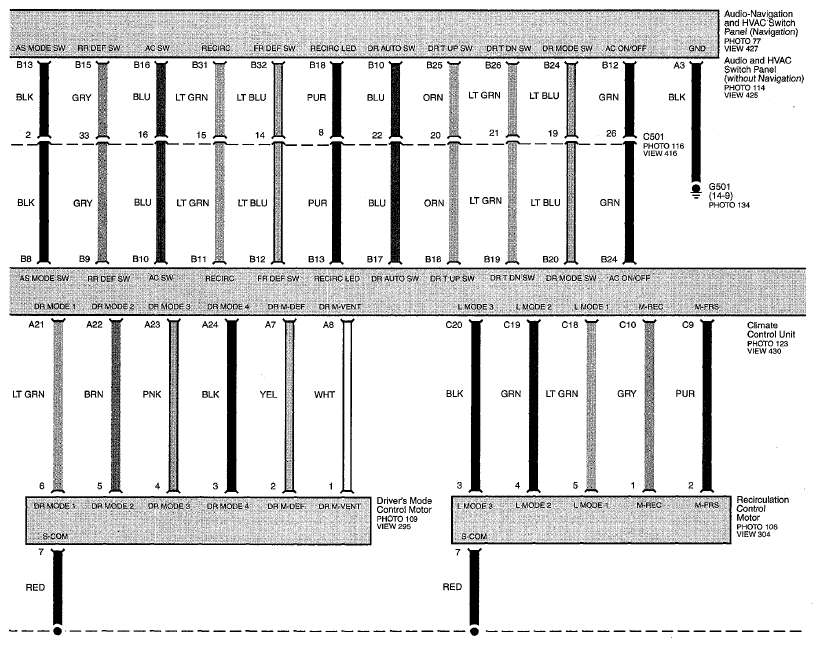

Fig 4: HVAC Circuit Diagram (Page 60-3)

G07747843

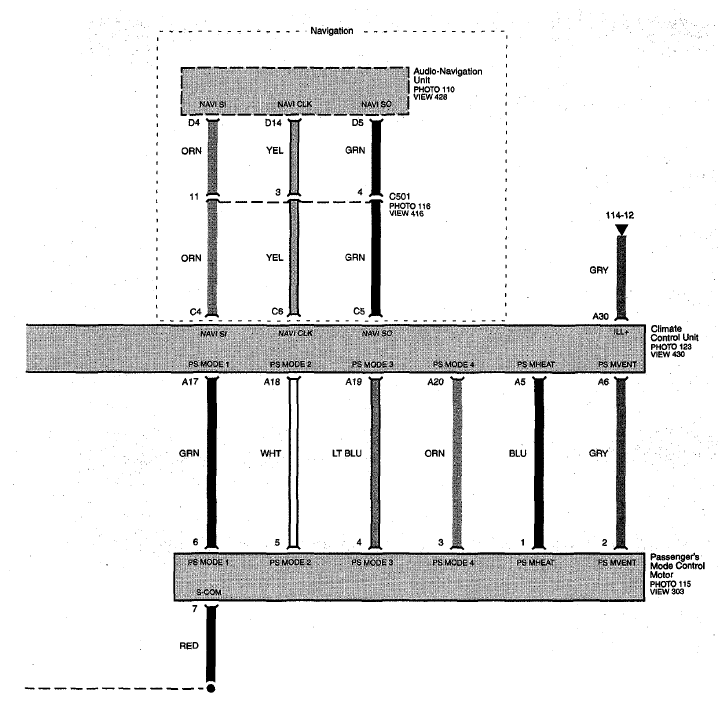

Fig 5: HVAC Circuit Diagram (Page 60-4)

G07747844
