DLC (Data Link Connector)
NOTE:
For connector or component location "PHOTO", see
OEM COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

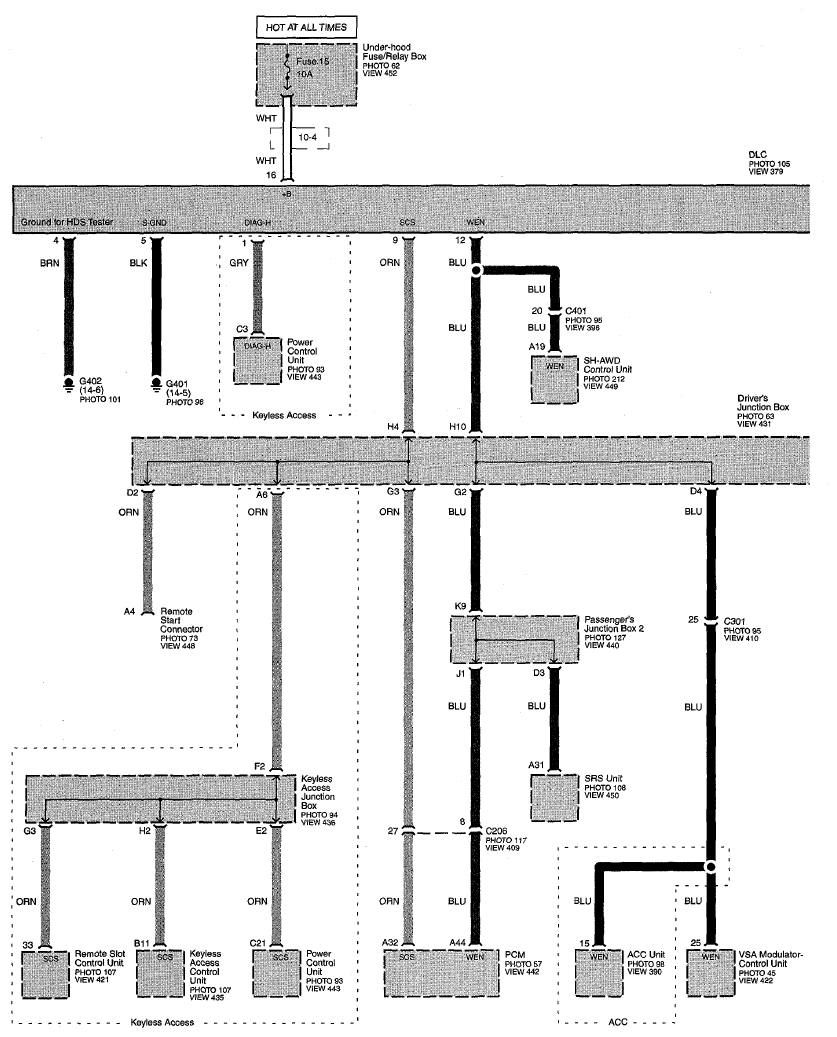

Fig 1: Data Link Connector Circuit Diagram (Page 16)

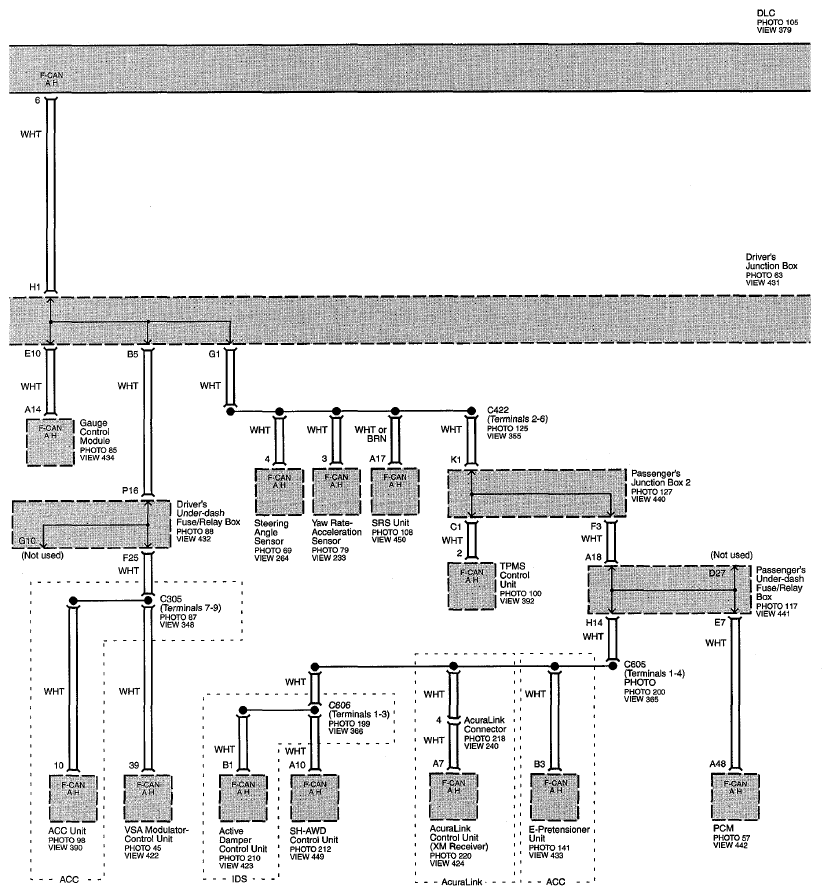

Fig 2: Data Link Connector Circuit Diagram (Page 16-1)

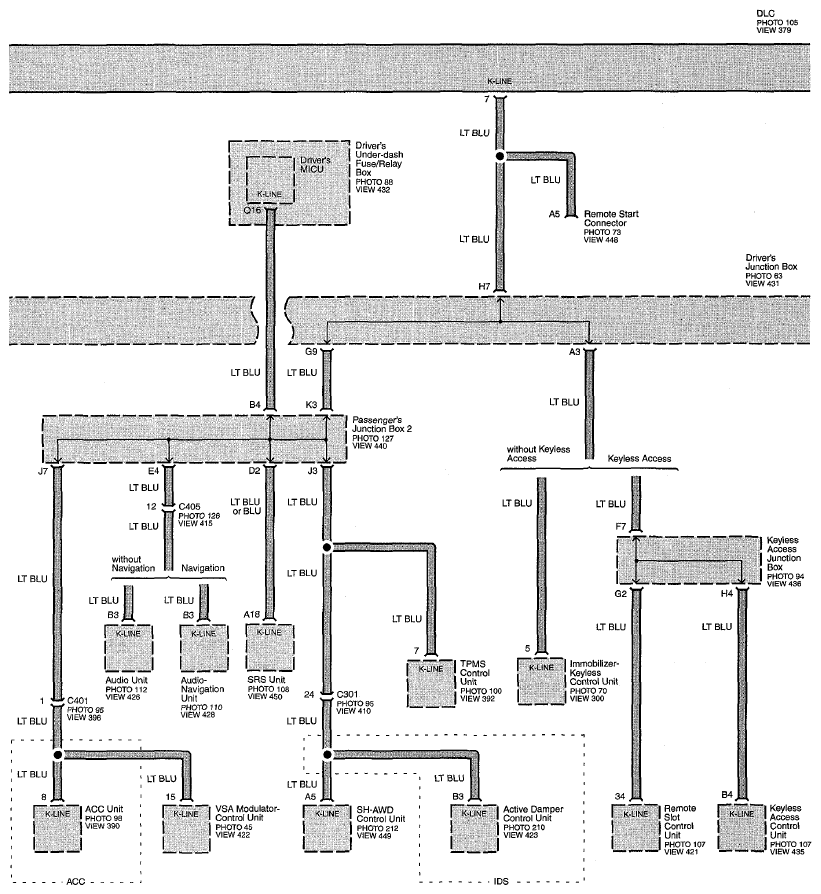

Fig 3: Data Link Connector Circuit Diagram (Page 16-2)

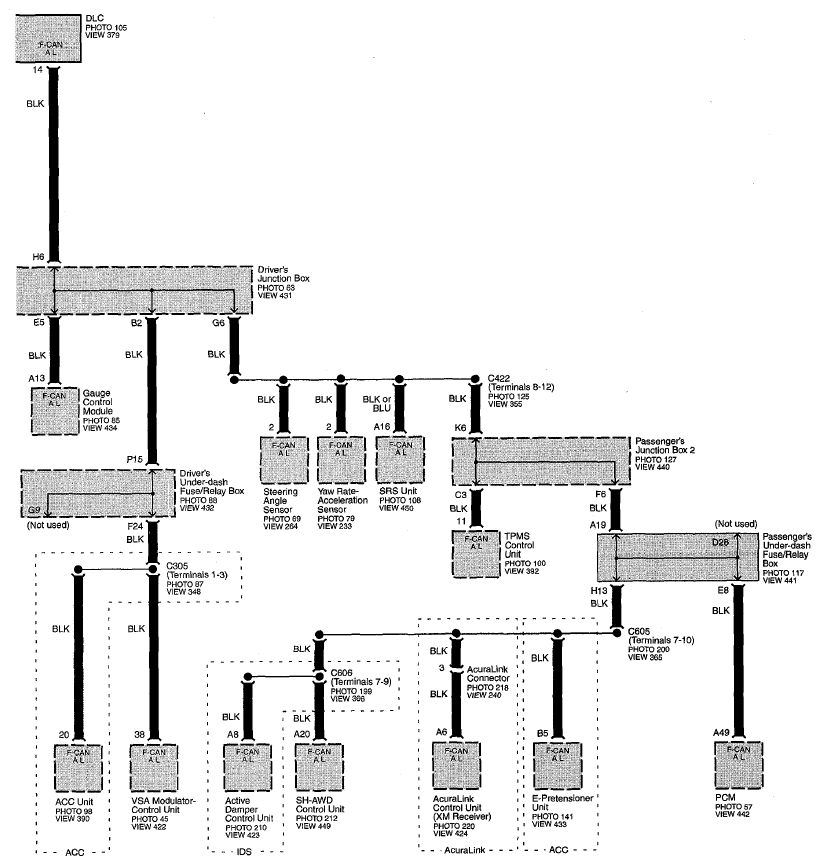

Fig 4: Data Link Connector Circuit Diagram (Page 16-3)
