Cruise Control
>>
without ACC
without ACC
Fig 1: Cruise Control Circuit Diagram - Without ACC (Page 34)

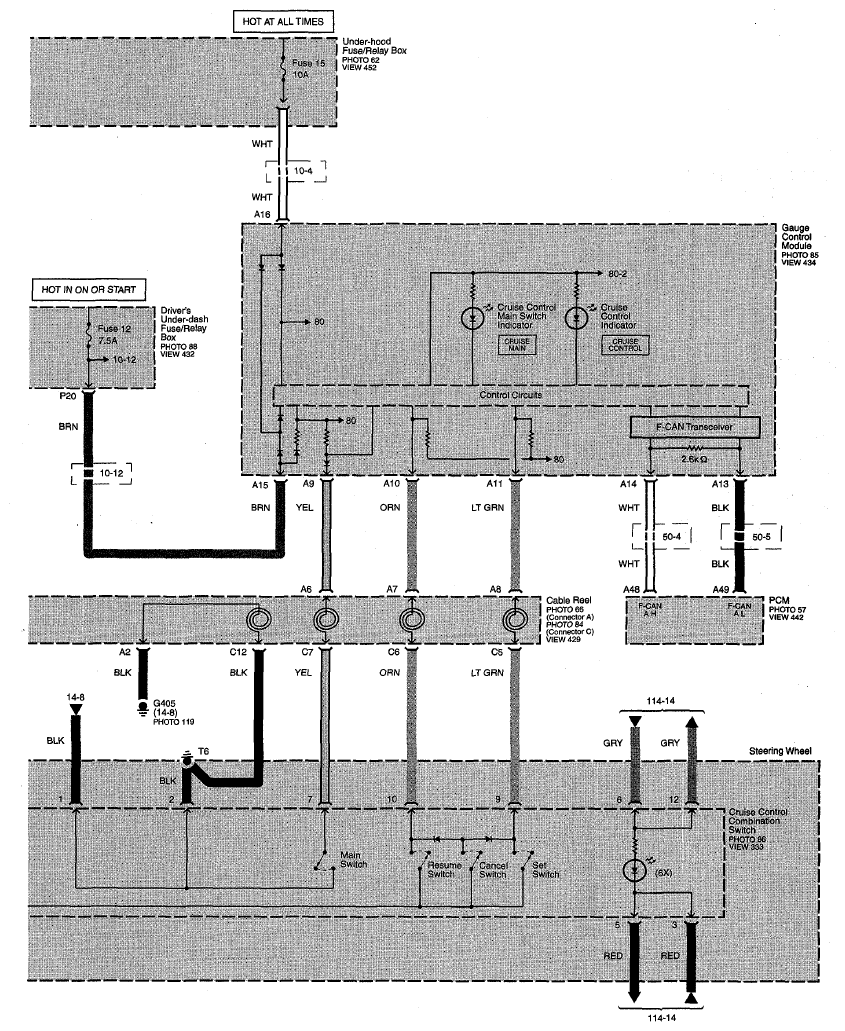

Fig 2: Cruise Control Circuit Diagram - Without ACC (Page 34-1)

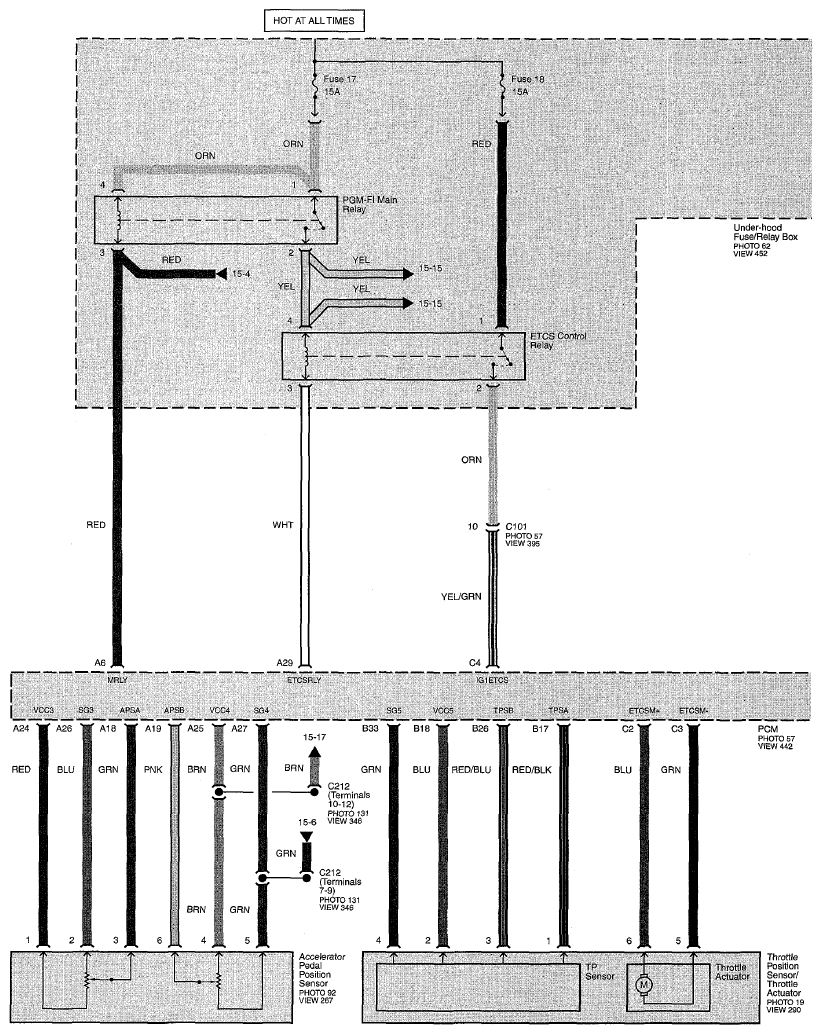

Fig 3: Cruise Control Circuit Diagram - Without ACC (Page 34-2)
