Keyless Access Junction Box Connector End View (Keyless Access) (View 335)

Under Left Side of Dash
On Dashboard Wire Harness

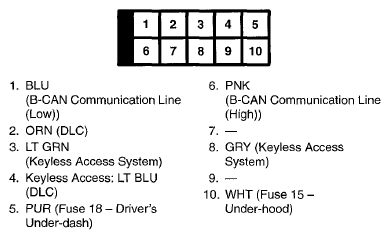

Connector A
- BLU

  Fig 1: Keyless Access Junction Box (Keyless Access) (Connector A) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

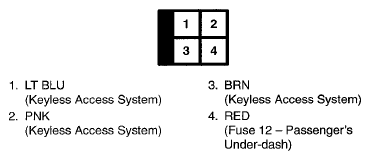

Connector B
- BRN

  Fig 2: Keyless Access Junction Box (Keyless Access) (Connector B) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

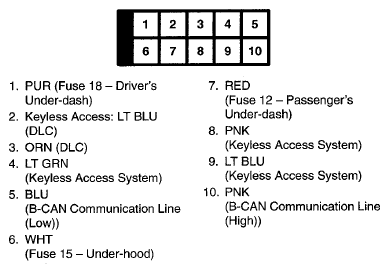

Connector C
- BRN

  Fig 3: Keyless Access Junction Box (Keyless Access) (Connector C) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

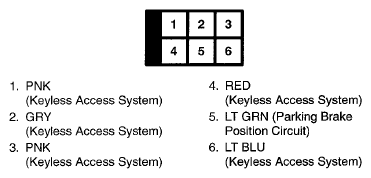

Connector D
- WHT

  Fig 4: Keyless Access Junction Box (Keyless Access) (Connector D) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

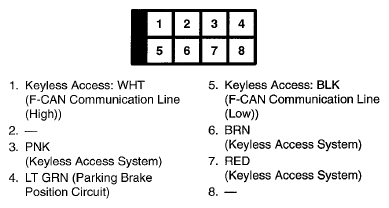

Connector E
- WHT

  Fig 5: Keyless Access Junction Box (Keyless Access) (Connector E) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

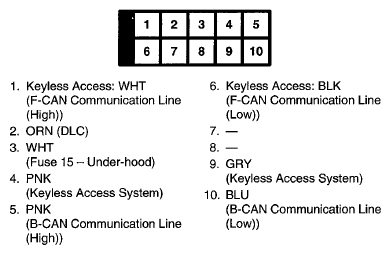

Connector F
- WHT

  Fig 6: Keyless Access Junction Box (Keyless Access) (Connector F) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

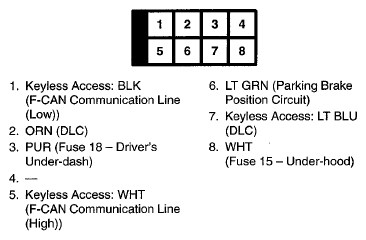

Connector G
- LT GRN

  Fig 7: Keyless Access Junction Box (Keyless Access) (Connector G) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

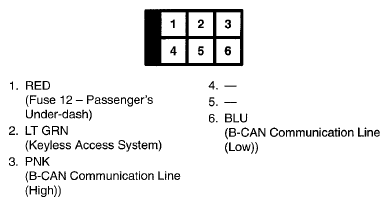

Connector H
- BLU

  Fig 8: Keyless Access Junction Box (Keyless Access) (Connector H) (View 335)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
