Acura
>>
2011
>>
TL SH-AWD, Automatic
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
C501 Connector End View (View 295)
C501 Connector End View (View 295)
WHT
Under Middle of Dash
Connects A/C Wire Harness to Audio Wire Harness

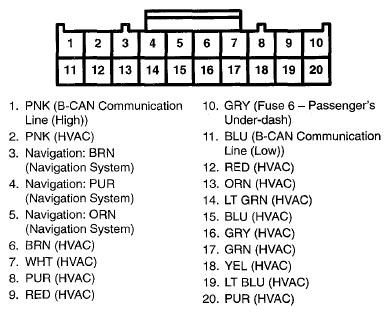

Fig 1: C501 Connector Terminal (View 295)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
