Front Passenger's Seat
Front Passenger's Seat

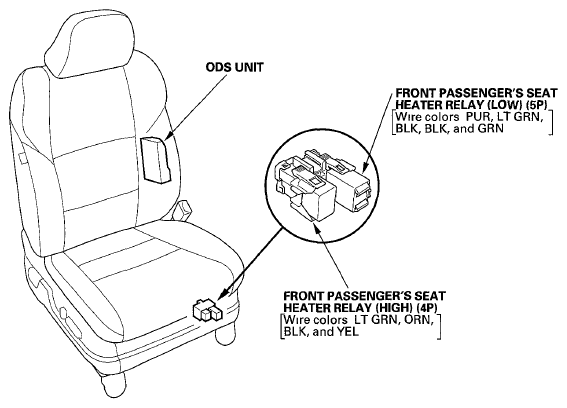

Fig 1: Identifying Relay And Control Unit Component Locations - Seat (Front Passenger's Seat)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
