Without SH-AWD

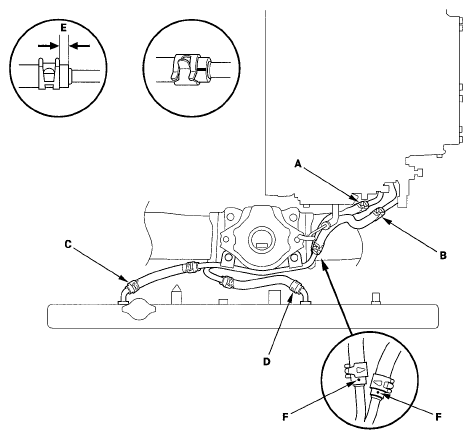

Fig 1: Identifying ATF Cooler Hose Distance (Without SH-AWD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure not to interfere with the surrounding parts

Install the ATF cooler hoses over the ATF cooler lines with the clips at the appropriate points in reference to the following list Align the paint marks (F) to the driver's side

ATF COOLER HOSE DISTANCE

Point	Distance from Hose End to Clip (E)	Hose End Contact Point
A	6-8 mm (0 24-0 31 in)	Bulge
B	6-8 mm (0 24-0 31 in)	Bulge
C	2-4 mm (0 08-0 16 in)	Bulge
D	2-4 mm (0 08-0 16 in)	Bulge

Refill the transmission with ATF to the proper level (see ATF REPLACEMENT )
