4th Clutch Transmission Fluid Pressure Switch Replacement
- Do the battery removal procedure (see
BATTERY REMOVAL AND INSTALLATION
)
- Remove the air cleaner assembly (see
THROTTLE BODY CLEANING
)

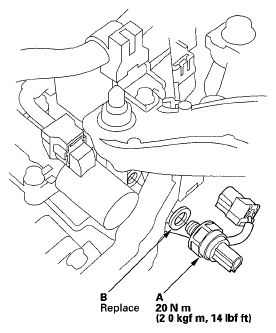

- Disconnect the 4th clutch transmission fluid pressure switch connector, and remove the 4th clutch transmission fluid pressure switch (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install a new 4th clutch transmission fluid pressure switch and a new sealing washer (B), and tighten the switch
- Make sure there is no water, oil, dust, or foreign particles inside the connector
- Connect the connector securely
- Install the air cleaner assembly (see
THROTTLE BODY CLEANING
)
- Do the battery installation procedure (see
BATTERY REMOVAL AND INSTALLATION
)
