M/T Model

  1. Disconnect the clutch pedal position switch A connector (A).

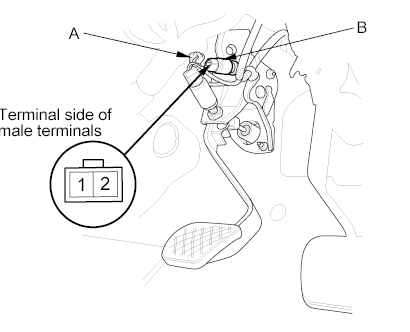

    2. Fig 1: Identifying Clutch Pedal Position Switch
    G00492176Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the clutch pedal position switch A (B).
  3. Check for continuity between the terminals according to the table
    • If the continuity is not as specified, replace the clutch pedal position switch A (see Clutch Pedal Position Switch A Replacement )
    • If OK, install the clutch pedal position switch A and adjust the pedal height (see Clutch Pedal, Clutch Pedal Position Switch A, and Clutch Pedal Position under CLUTCH
Fig 2: View Of Continuity Table
G00492177Courtesy of AMERICAN HONDA MOTOR CO., INC.
